Maximizing Solar Power Generation with Smart Tracking Technology

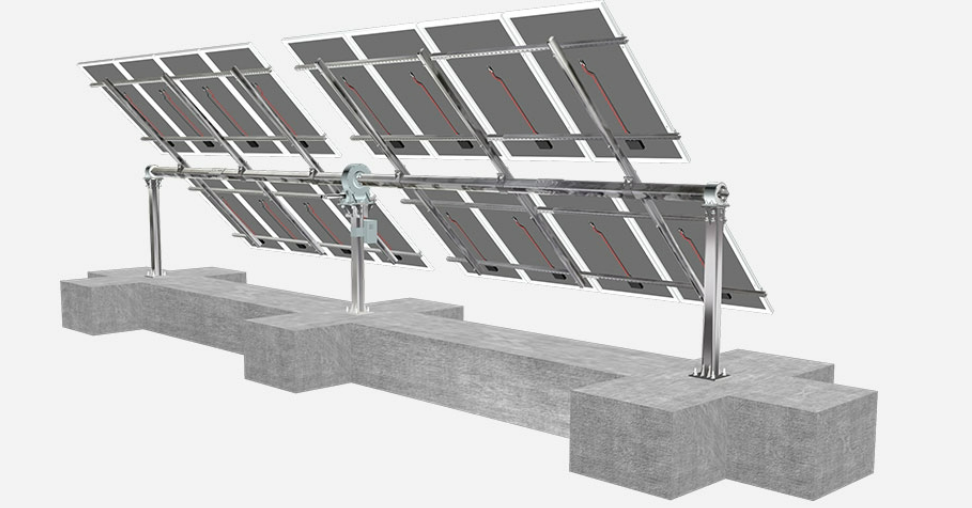

The MRac Single Axis Solar Tracking System is an advanced solution designed for large-scale solar power plants, particularly in low-latitude regions. This system utilizes a single motor and a control system to automatically adjust the position of the solar modules, ensuring they follow the sun throughout the day. The integration of a unique linkage structure and slewing bearing ensures high system stability, minimizing the rate of failure and reducing maintenance costs.
By optimizing the angle of the solar modules, the TR2 system significantly boosts the energy output, making it an ideal solution for maximizing power generation and efficiency in solar projects.
🔧 Key Features
✅ Automatic Tracking without Manual Debugging
The system autonomously adjusts to the sun’s position, with a tracking angle range of +/- 45 degrees. This enhances energy generation by 20% – 30% compared to fixed systems, while offering excellent environmental adaptability, unaffected by rainy or cloudy weather.
✅ Customized System Configuration Available
Tailored to meet specific customer needs, the system can be configured for various types of modules and installations, providing flexibility for different projects.
✅ Equipped with GPS for Accurate Time Synchronization
The system integrates GPS technology to ensure accurate tracking and time management, optimizing the performance of the solar array.
✅ High Weather Resistance
Designed to operate under extreme conditions from -40℃ to 85℃, the TR2 system boasts excellent weather resistance, ensuring reliable and safe operation in various climates.
✅ Remote Communication and Group Control
The system supports remote communication and group control for multiple units, allowing centralized management and monitoring. It also features automatic fault detection, self-protection, and alarms, enhancing operational efficiency.
✅ Overcurrent Protection
The system is equipped with quadruple over-current protection, ensuring the safety and stability of the entire setup.
📐 Technical Specifications
| Specification | Details |
|---|---|
| Tracking Type | Single axis automatic tracking |
| Tracking Angle | +/- 45 degrees |
| Power Generation | 20% – 30% higher efficiency than fixed systems |
| Temperature Range | Operates in -40℃ to 85℃ |
| Communication | Remote communication, group control, and self-protection |
| Protection Features | Quadruple over-current protection |
| GPS | Integrated for precise tracking and time synchronization |
| Control System | Motor-driven with linkage structure and slewing bearing |
🌍 Service & Support
- Consultation and Custom Solutions: Our team will work with you to design the perfect solar tracker system based on your project requirements, ensuring maximum energy efficiency.
- On-Site Support: Benefit from on-site technician support for installation and maintenance guidance.
- Comprehensive Installation Guide: Access a detailed installation guide to simplify setup, along with ongoing online support.
- 10-Year Warranty: Enjoy peace of mind with a 10-year warranty, ensuring long-term reliability and performance.
