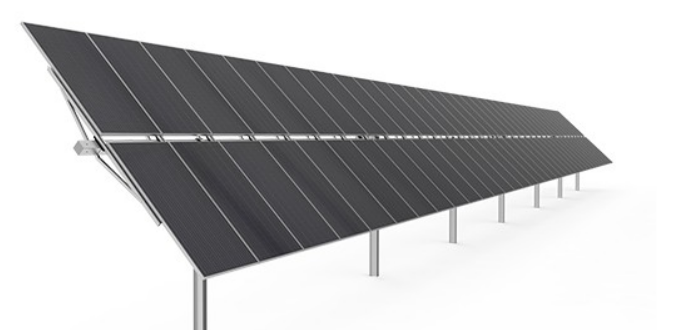

AI-Driven Tracking with High Wind Resistance for Large High-Power Modules
This self-developed solar tracking system features a unique multi-point transmission structure that dramatically enhances rigidity and wind resistance—ideal for the latest 182mm and 210mm large silicon high-power modules. Each row includes 3 or more drive units, increasing tracking precision and structural reliability. The system is wind-tunnel tested and supports AI-driven tracking with intelligent protection against extreme weather conditions.
🔩 Key Features

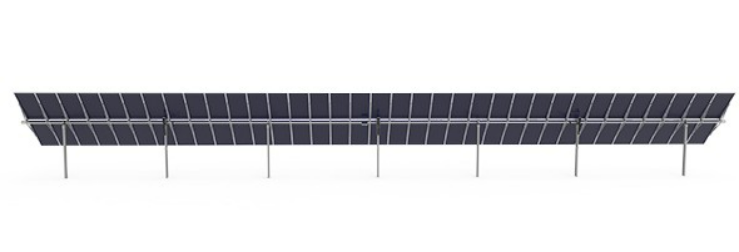

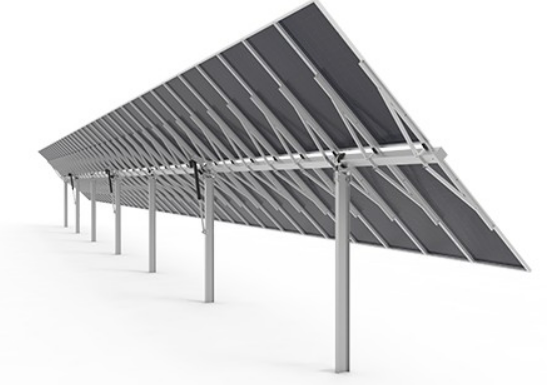

✅ Multi-Point Drive System
Three or more drives per tracker row increase rigidity by 20% and improve wind resistance and tracking precision.
✅ Advanced AI Control
Incorporates AI-powered tracking algorithms, including double-sided tracking logic for 15–25% higher power output.
✅ Large Module Compatibility
Designed for 600W+ modules with lengths up to 2.5m and up to 120 modules per tracker.
✅ Flexible Foundation Options
Supports static pressure piles, precast piles, or concrete bases. North-south slope up to 15%, east-west unlimited.
✅ Reliable Communication & Power Options
Supports LoRa, Zigbee, or RS485. Powered via string or external sources with <0.05kWh/day power consumption.
✅ Certified System Reliability
Wind tunnel tested, TÜV certified, and built to withstand wind speeds up to 47 m/s, ensuring 25+ years of service life.
📐 Technical Specifications
| Category | Specification |
|---|---|
| Drive System | Linear actuator with 3–5 motors per tracker |
| Tracking Range | ±50° |
| Module Configuration | Dual-row vertical |
| Structure Material | Hot-dip galvanized steel, Al-Mg-Zn plate |
| Control System | Hybrid GPS time + tilt sensor (MCU-based) |
| Accuracy | Tracking: ±2°, Control: ＜2° |
| Slope Tolerance | N-S: ≤15%, E-W: unlimited |
| Wind Speed Resistance | Up to 47 m/s (3-sec gust) |
| Protection Wind Speed | 18 m/s |
| Ground Clearance | ＞500mm (customizable) |
| Waterproof Rating | IP65 |
| Communication | LoRa / Zigbee / RS485 |
| Operating Temp | -40°C to +70°C |
| Power Supply | String or external AC/PV |
💡 Ideal Applications

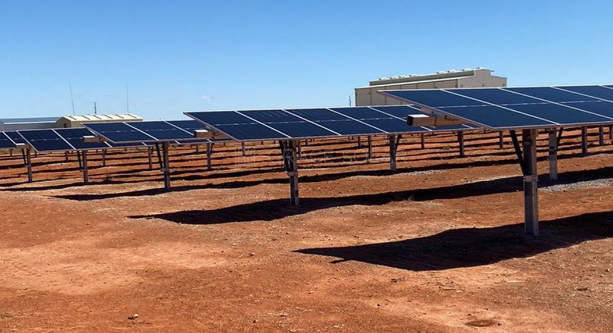

- Utility-scale PV plants with bifacial modules
- Projects using 182mm / 210mm high-power modules
- Sites with variable terrain and high civil construction costs
- Installations requiring advanced AI tracking optimization
