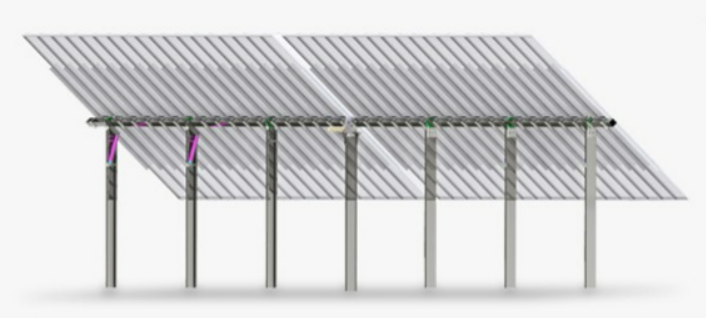

Optimized Tracking for Bifacial Modules and Sloped Terrains
The GS-Light Independent Single Row 2P System is purpose-built for projects using bifacial or high-power modules, delivering maximum energy output with minimal civil engineering. With a wide ±60° tracking angle, advanced AI control, and the ability to adapt to up to 20% terrain slope, it is ideal for irregular and sloped sites. The system reduces column count by 40%, offering substantial savings in material and installation labor, making it especially cost-effective for challenging terrains.
🔧 Key Features
- 2P Bifacial Design: Fully optimized for double-sided modules, allowing unobstructed rear-side exposure and increased yield.
- Slope Adaptability: Handles north-south slopes up to 20%, perfect for non-flat project sites.
- AI-Driven Control: Real-time GPS + tilt sensor control improves tracking accuracy and power generation by 6% or more.
- Quick Install, Lower Civil Costs: Reduced columns and pre-assembled parts make installation faster and cheaper.
- Compatible with 600W+ Modules: Supports modern long-format modules up to 2.5 meters in length.
📐 Technical Specifications
| Category | Details |
|---|---|
| Drive Modules | 2X45 |
| Material | HDG Steel + Al-Mg-Zn + Pre-galvanized |
| Motors per Tracker | 1 |
| Tracking Range | ±60° |
| Module Layout | Double row vertical |
| N-S Slope | ≤20% |
| E-W Slope | Unlimited |
| Foundation Options | Static pile / Precast / Concrete |
| Wind Resistance | ≤47m/s (3s gust), protection at 18m/s |
| Clearance | ＞500mm (customizable) |
| Ground Use Rate | 30% |
| Grounding | Self-grounding |
| Drive Type | Rotary drive |
| Motor Power | 150W |
| Flat Time | ＜8 minutes |
| Control System | GPS + tilt sensor hybrid (MCU-based) |
| Power Supply | String / External / Lithium backup |
| Protection | IP65, full motor safety suite |
| Power Consumption | ＜0.08kWh/day |
| Comms & Protocol | RS485 Modbus, wired/wireless optional |
| Operating Temp | -40℃ to +70℃ |
📈 Ideal For:
- Projects with bifacial modules
- Undulating or sloped terrain (N-S ≤20%)
- Solar farms seeking low civil engineering cost
- Sites needing efficient space use with high-yield tracking
- Installations using 182mm/210mm high-power modules
