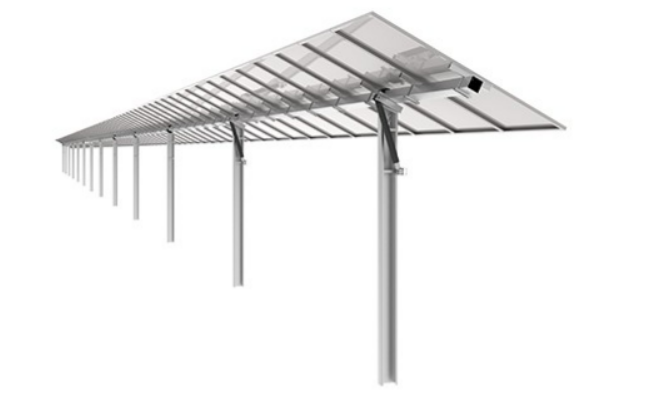

AI-Enhanced Single-Row Solar Tracking System for Complex Terrain
The GS-Light 1P Tracking System is a high-performance, independent single-row tracker designed for irregular land and complex terrain. Capable of adapting to north-south slopes up to 20%, it keeps a low profile and delivers strong wind resistance. With a modular structure supporting up to 90 modules per tracker, the GS-Light is highly flexible, cost-effective, and easy to install. Powered by advanced AI control and optional lithium battery backup, this system is ideal for utility-scale solar farms seeking efficiency, resilience, and terrain adaptability.
🔩 Key Features
✅ Slope-Adaptive Single-Row Design
Handles up to 20% north-south slope and unlimited east-west slope—ideal for uneven or irregular terrain.
✅ Advanced AI Controller
Boosts power generation by 6% through intelligent optimization, extreme weather response, and tilt tracking.
✅ Compact & Efficient Layout
Installs up to 90 modules per row; compatible with 600W+ panels up to 2.5m in length.
✅ Reliable Power Supply Options
Supports string-powered or lithium battery backup, ensuring continuous operation and reduced LCOE.
✅ Wind Tunnel Tested and Certified
Engineered for wind speeds up to 47 m/s with full TÜV and wind tunnel certifications.
✅ Quick & Easy Installation
Factory pre-assembled with customized control system for rapid deployment and reduced labor costs.
📐 Technical Specifications
| Category | Specification |
|---|---|
| Drive Modules | 1 per tracker (up to 90 modules) |
| Material | Hot-dip galvanized steel, Al-Mg-Zn plate |
| Tracking Range | ±60° |
| Module Layout | Single row vertical |
| Slope Adaptability | N-S: ≤20%, E-W: Unlimited |
| Foundation Options | Static pressure pile, precast pile, concrete base |
| Wind Resistance | Up to 47 m/s (3-sec gust), 18 m/s protection speed |
| Clearance | ＞500mm (customizable) |
| Grounding | Self-grounding |
| Motor Type | Rotary drive, 150W |
| Tracking Accuracy | Mechanical: ±2°, Control: ＜2° |
| Power Consumption | ＜0.08 kWh/day |
| Control System | GPS time + tilt sensor hybrid, MCU controller |
| Communication | RS485 (Modbus), wired/wireless |
| Operating Temp | -40°C to +70°C |
| Ingress Protection | IP65 |
💡 Ideal Applications
- PV power stations on irregular or sloped terrain
- Solar projects using large-format modules (182mm / 210mm)
- Sites requiring low LCOE and smart tracking
- Projects in wind-prone or remote locations
📞 Request a Free Quote Now
Looking for a slope-friendly, AI-optimized tracking solution?
✅ Custom engineering based on terrain
✅ Modular design for fast deployment
✅ Full support for large-format panels
