Non-Penetrative Mounting Solution with Flexible Tilt for Flat Roofs

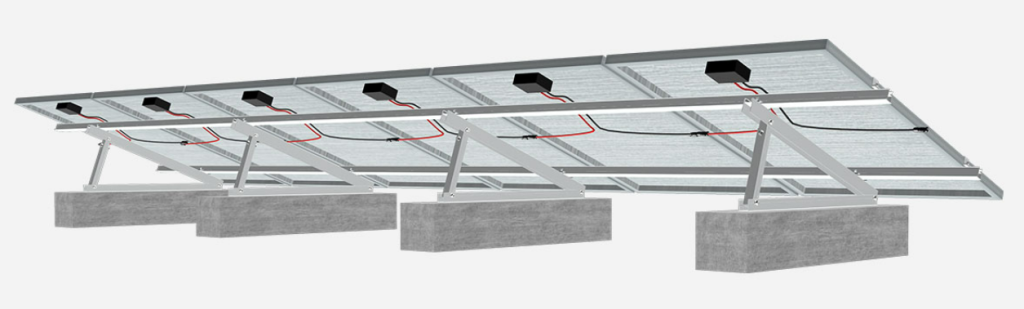

The Matrix II Adjustable Tilt Solar Mounting System is a non-invasive, versatile solar racking solution engineered for flat rooftops. Its non-penetrative triangular structure protects roof integrity while offering the adjustability and flexibility necessary to maximize solar energy yield. Designed for quick installation and long-term performance, Matrix II supports landscape or portrait module layouts in single or double-row configurations.
This system is ideal for both residential and commercial solar projects seeking a balance of durability, aesthetics, and performance—without drilling into the roof.
🔩 Key Features
✅ Non-Penetrative Installation
Triangular mount structure avoids roof drilling, ensuring easy deployment and zero roof damage.
✅ Adjustable Tilt Angle
Customize tilt to optimize energy production year-round, based on latitude and sun path.
✅ Flexible Layout Compatibility
Works with landscape or portrait panels in single or double rows, enhancing layout versatility.
✅ Factory Pre-Assembled Components
Minimized on-site labor with pre-assembled parts for a fast and efficient installation.

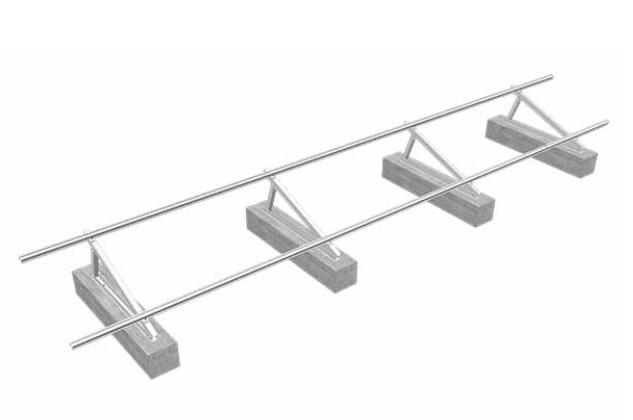

✅ Strong Mudsill Base Options
Compatible with concrete blocks or steel foundations on flat or slightly pitched rooftops.
📐 Technical Specifications
| Feature | Specification |
|---|---|
| Installation Type | Flat Roof (non-penetrative) |
| Tilt Angle | Adjustable (typical: 10°–60°) |
| Panel Orientation | Landscape or Portrait |
| Row Options | Single or Double Row |
| Foundation Options | Concrete blocks, steel base, membrane roofs |
| Materials | Anodized Aluminum Alloy (AL6005-T5), SUS304 Stainless Steel |
| Warranty | 10 Years |
💡 Ideal Applications
- Commercial rooftops with strict waterproofing requirements
- Residential flat roof PV systems
- Projects requiring adjustable tilt for seasonal optimization
- Sites where roof penetration is not permitted or desired
