Optimize Your Solar Installations with the Chiko Efficient Tile Roof Mount

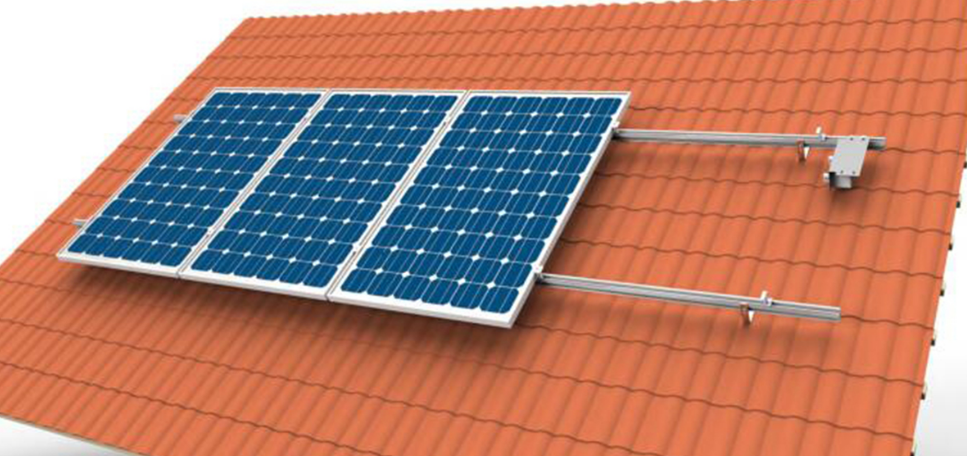

The Chiko Efficient Tile Roof Mount system is designed for flexible, quick, and easy installation on various tile roof types. Crafted from extruded aluminum, this universal solar mounting solution provides an efficient way to install solar panels on tile roofs, including pan tile, cement/flat tile, and asphalt shingles. The pre-assembled components minimize installation time, making it a highly cost-effective choice for both residential and commercial solar projects.
Key Features of the Chiko Efficient Tile Roof Mount
- Universal Compatibility: This system is easily adaptable to a variety of tile roof types, including pan tile, cement/flat tile, and asphalt shingles. Its versatility ensures it can be used on almost any roof configuration, making it perfect for a wide range of installations.
- Heavy Duty Performance: Built to withstand high winds and snow loads, the Chiko Efficient Tile Roof Mount ensures your solar system is secure in various weather conditions. It’s designed to handle wind speeds of up to 60 m/s and snow loads of 1.8 kN/m².
- Quick Installation: The system comes pre-assembled, with components designed to minimize installation time. This easy-to-install solution reduces labor costs and increases the convenience of solar panel mounting.
- Flexible Mounting Solutions: The system supports both portrait and landscape mounting, making it suitable for different solar panel configurations. The versatility of the mounting solutions allows users to optimize their solar array setup for maximum performance.

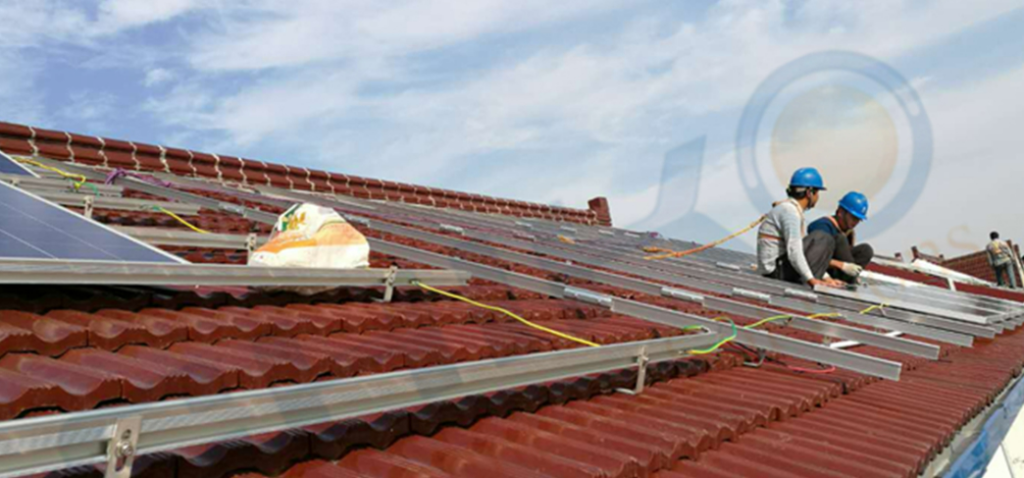

Step-by-Step Installation Process
- Install the Hooks: Begin by installing the hooks onto the roof.
- Connect Rail to Tile Hook: Use the flange nut to secure the rail to the tile hook.
- Install the Rail Splice Kit: Attach the splice kit between rail sections for a secure connection.
- Insert the Mid Clamp: Place the mid clamp to secure the solar panels in place.
- Insert the End Clamp: Secure the end of the rail with the end clamp.
- Complete Installation: Once the clamps are secure, the system is ready for use.

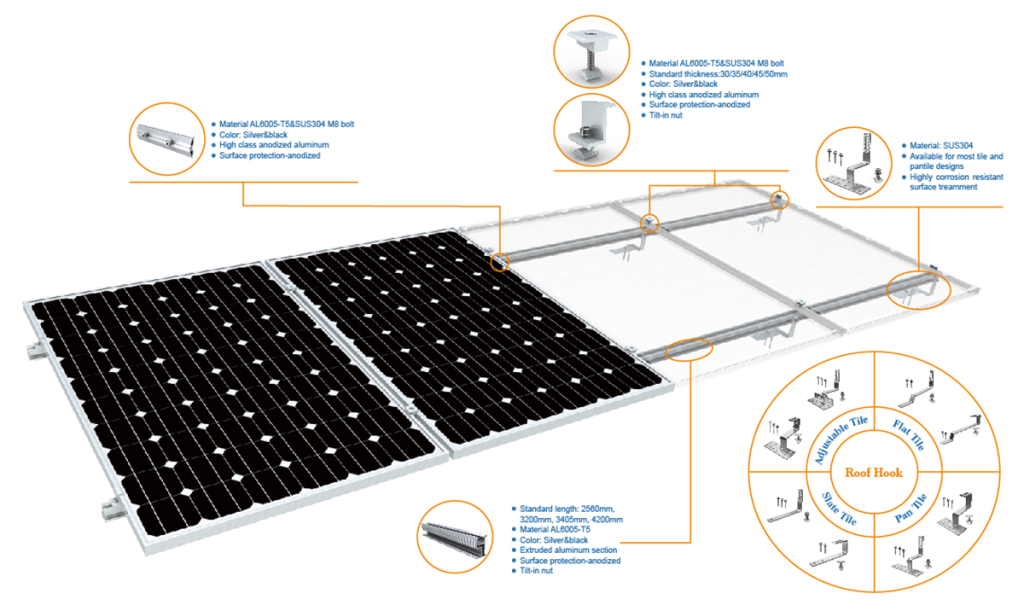

Technical Specifications
- Roof Pitch: 0° – 45°, suitable for most pitched roofs and walls.
- Rail Lengths: Available in 2, 3, and 4 module lengths to suit different panel configurations.
- Pre-Assembled Clamps: Made from AL6005-T5 aluminum, ensuring strength and durability.
- Clamp Colors: Available in silver or black to match your roofing aesthetic.
- Splice Kit: Aluminum, fastener-free installation for easy and secure rail connections.
- Wind Speed Resistance: Up to 60 m/s.
- Snow Load: Can support up to 1.8 kN/m² of snow.
- Compatible Modules: Suitable for all standard module types.
Advantages of the Chiko Efficient Tile Roof Mount
- Flexibility for Pitched Roof Designs: The system is compatible with most pitched roof designs, making it a versatile solution for various types of residential and commercial buildings.
- Hook Options: Choose between fixed or adjustable Chiko hooks to suit all types of tile roofs, ensuring a secure and stable installation.
- Comprehensive Range of Accessories: The system includes a full range of stainless steel hooks and aluminum profiles, ensuring every component is durable and corrosion-resistant.
- Compatibility: Fully compatible with all Chiko profiles, allowing for seamless integration with other Chiko solar mounting solutions.
Why Choose Chiko Efficient Tile Roof Mount?
The Chiko Efficient Tile Roof Mount offers a reliable, cost-effective, and flexible solution for solar installations on tile roofs. Its easy installation, heavy-duty performance, and universal compatibility make it an ideal choice for anyone looking to install solar panels on a tile roof. Whether you’re working with residential homes, commercial buildings, or large-scale projects, this system will ensure your solar panels are mounted securely and efficiently, maximizing your investment in renewable energy.
