Versatile Tilt Solar Brackets for Flat Roof Installations
The RMIV Adjustable Double-Row Tripod Mounting System offers an ideal mounting solution for residential and commercial flat rooftops. With a tilt range from 15° to 60°, it allows solar arrays to be angled optimally for maximum sun exposure throughout the year. Designed with durable anodized aluminum, the system accommodates both landscape and portrait module orientations, and supports single or double-row configurations.
This system is perfect for clients looking to balance efficiency, flexibility, and quick installation—especially in locations where solar angles vary seasonally or rooftops have space constraints.
🔩 Key Features

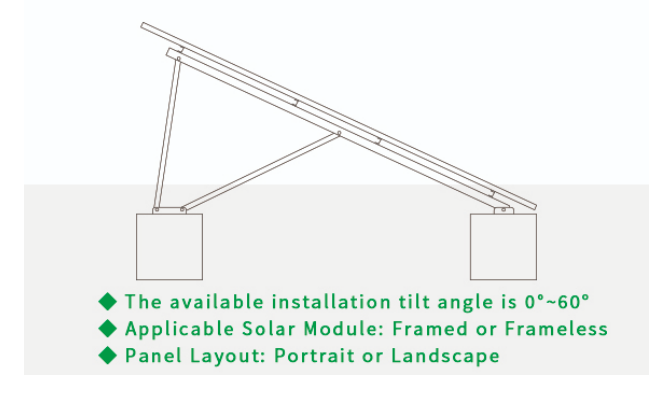

✅ Wide Tilt Angle Adjustability (15°–60°)
Adapts to varying solar angles for improved energy yield across diverse geographic locations and seasons.

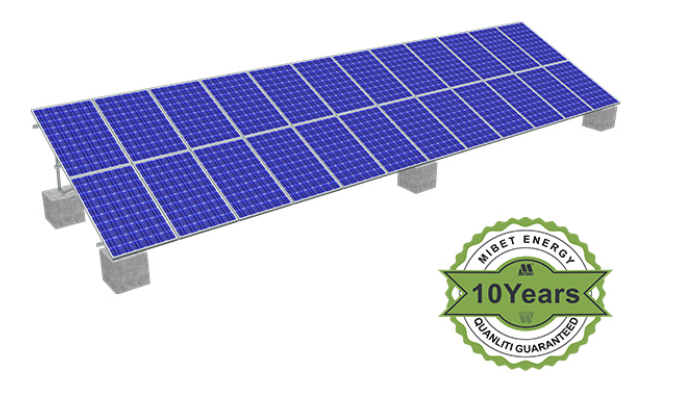

✅ Flexible Module Layout
Supports both single and double-row mounting, in either landscape or portrait orientation, allowing efficient use of available roof space.
✅ Quick Installation with Pre-Assembled Parts
Factory-assembled components and simplified tripod frame design minimize on-site labor and speed up deployment.

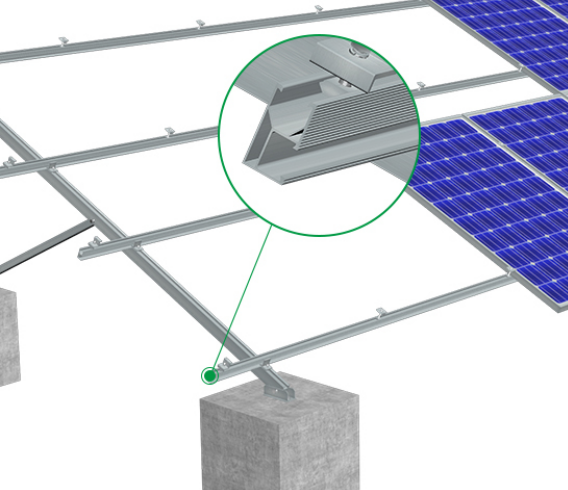

✅ Unique Mudsill Base Design
The base structure is compatible with concrete, steel, and membrane flat roofs, ensuring strong structural anchoring without compromising roof integrity.
✅ Durable Aluminum Build
Made from corrosion-resistant AL6005-T5 aluminum, ensuring long-term durability and low maintenance in all climates.
📐 Technical Specifications
| Feature | Specification |
|---|---|
| Tilt Angle | Adjustable from 15° to 60° |
| Panel Orientation | Portrait or Landscape |
| Row Configuration | Single or Double-Row |
| Roof Compatibility | Flat rooftops (residential/commercial), steel or concrete |
| Foundation Compatibility | Concrete blocks, chemical anchors, or steel base |
| Material | AL6005-T5 Aluminum Alloy, SUS304 Stainless Steel |
| Warranty | 10 Years |
💡 Ideal Applications
- Residential flat-roof PV systems
- Commercial rooftop solar installations
- Projects requiring seasonal tilt adjustments
- Sites with limited roof space needing double-row efficiency
📦 Mibet Energy Support Services
- Free system design based on rooftop layout and solar exposure
- CAD drawings and angle optimization recommendations
- Pre-sale consultation and after-sale technical assistance
- 10-year product warranty
