Flexible and Durable Mounting Solution for Sloped Concrete Roofs and Inclined Terrain

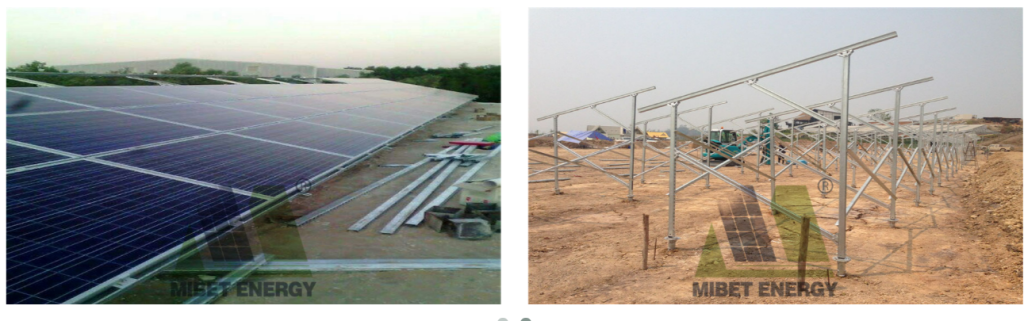

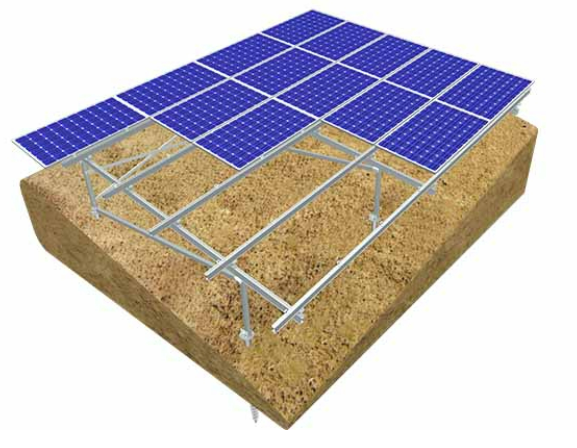

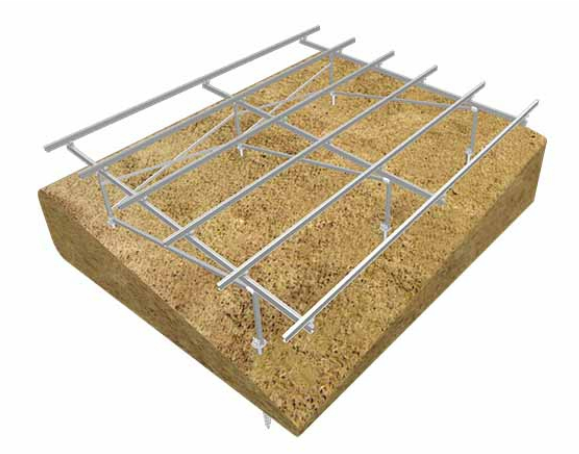

The MRac Slope Ground Solar Panel Mounting System is engineered to meet the demands of PV installations on inclined surfaces such as sloped concrete roofs and undulating terrain. Designed with high resistance to wind and snow loads, it offers outstanding structural integrity and adaptability, making it a reliable solution for a range of solar deployment scenarios.
Featuring a patented anchor plate design, the system allows for fine-tuned onsite adjustments and supports multi-directional alignment (east-west and south-north), maximizing solar exposure efficiency. The pre-assembled components reduce labor time and eliminate the need for onsite cutting or drilling, ensuring quick and cost-effective installations.
🔩 Key Features
✅ Pre-Assembled Components
Most parts are pre-assembled in the factory, cutting down on installation time and labor costs. No onsite drilling or cutting is required.
✅ No Drilling on Portrait Beam
Portrait beams are fixed with specially designed clamps that align with the direction of gravity, improving structural strength and load distribution.
✅ Bidirectional Adjustment for Flexibility
The system allows adjustments in east-west and south-north directions, enabling better alignment with site-specific solar angles and topographies.

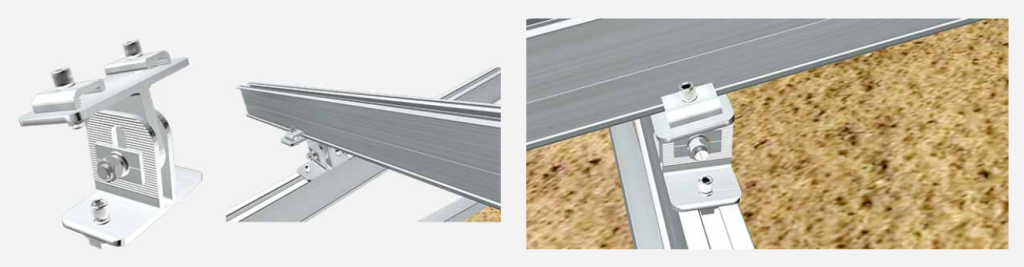

✅ Versatile Anchor Plate Design
Provides minor tolerance and alignment flexibility on uneven or irregular sloped surfaces, streamlining the installation process.
✅ Foundation Compatibility
Works with a range of foundation types including ground screws, concrete bases, and steel foundations, giving you more freedom in site planning.
📐 Technical Specifications
| Feature | Specification |
|---|---|
| Application | Sloped concrete roofs, inclined ground terrain |
| Installation Angle | Customized per project site |
| Orientation Adjustability | Bidirectional (E-W, S-N) |
| Materials | Anodized Aluminum Alloy (AL6005-T5), Stainless Steel SUS304 |
| Foundation Types | Ground screws, concrete base, steel foundation |
| Wind Load Resistance | Up to 60 m/s |
| Snow Load Resistance | Up to 1.5 kN/m² |
| Warranty | 10 Years |
💡 Ideal Applications
- Residential or commercial buildings with sloped concrete rooftops
- Hilly or uneven ground installations requiring directional adjustability
- Solar farms in regions with high wind or snow load conditions
- Projects needing non-intrusive mounting on challenging terrain
📞 Looking for a Slope-Friendly Solar Mounting System?
Mibet Energy’s engineering team offers personalized support to ensure the best fit for your terrain:
✅ Custom site design & layout optimization
✅ Wind and snow load calculation
✅ Fast delivery with pre-assembled kits
