Optimized Solution for Medium to Large-Scale Solar Installations
The MRac Ground Solar Mounting System PGT5 is an upgraded version of the GT5 model, designed to meet the demands of medium to large-scale solar photovoltaic (PV) projects. With optimized main beams and posts, the system offers a refined design that retains its impressive strength against wind and snow loads. The included Anchor Plate allows for minor on-site adjustments, making the system adaptable to a variety of site conditions. Patented and certified, this design ensures project safety while accelerating the installation process.
The PGT5 system’s no front post design helps reduce material costs, making it a cost-effective solution for projects requiring low ground clearance.
🔧 Key Features
✅ Symmetrical Design of Tilt-in-Nut and Rail Channel
The tilt-in-nut and rail channel design is symmetrical, with no direction limitations, which enhances the efficiency of installation and simplifies the mounting process.
✅ Pre-assembled Components Save Onsite Installation Time
Most components are pre-assembled at the factory, eliminating the need for on-site cutting or drilling, which significantly reduces labor costs and installation time.
✅ Flexibility and Adjustability
The structure allows for flexibility in the orientation of the panels (east-west, west-south, and south-north), ensuring the best possible solar yield by adjusting to the site conditions.
✅ No Front Post Design
This design eliminates the need for front posts, saving on material costs and making it particularly well-suited for installations where low ground clearance is a requirement.
📐 Technical Specifications
| Specification | Details |
|---|---|
| Mount Type | Ground-mounted |
| Material | High-quality anodized aluminum |
| Design | Pre-assembled, modular, cost-effective |
| Wind Load | Up to 60 m/s (customizable for project needs) |
| Snow Load | Up to 1.6 kN/m² (reinforced if required) |
| Front Post | Not required (cost-saving design) |
| Orientation | Adjustable for east-west, west-south, and south-north directions |
| Warranty | 10 Years |

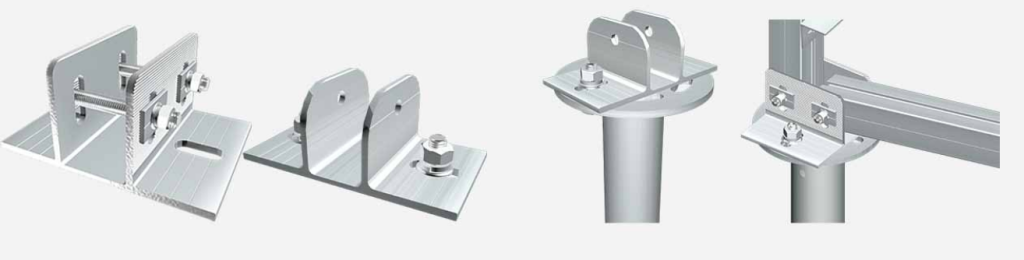

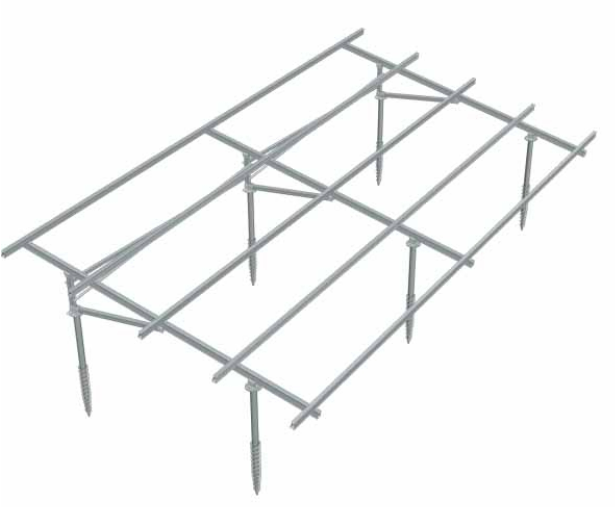

📸 Mounting Structure Visual
🌍 Service & Support
- Consultation and Custom Solutions: Our team provides tailored solutions to meet the specific needs of your solar project, ensuring an optimal configuration.
- On-Site Project Support: Receive assistance from our experienced technicians during installation, using satellite survey data to guide your project for optimal setup.
- Comprehensive Installation Guide: Access detailed guides and online support to ensure seamless installation.
- 10-Year Warranty: Enjoy peace of mind with a 10-year warranty on the PGT5 system, ensuring long-term performance and durability.
