Ground Solar Mounting System PGT2 - Solar Carport Finder

Optimized Aluminum Ground Mount Solution for Large-Scale Solar Projects

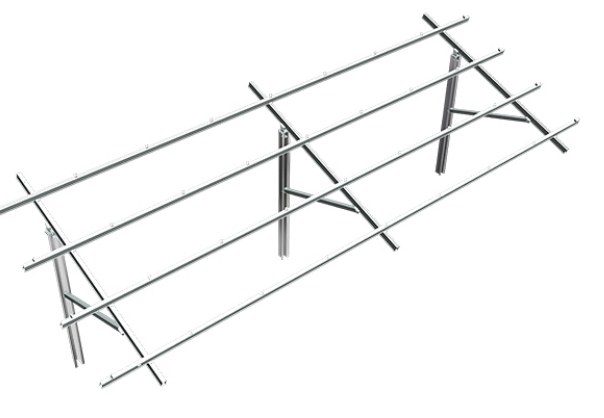

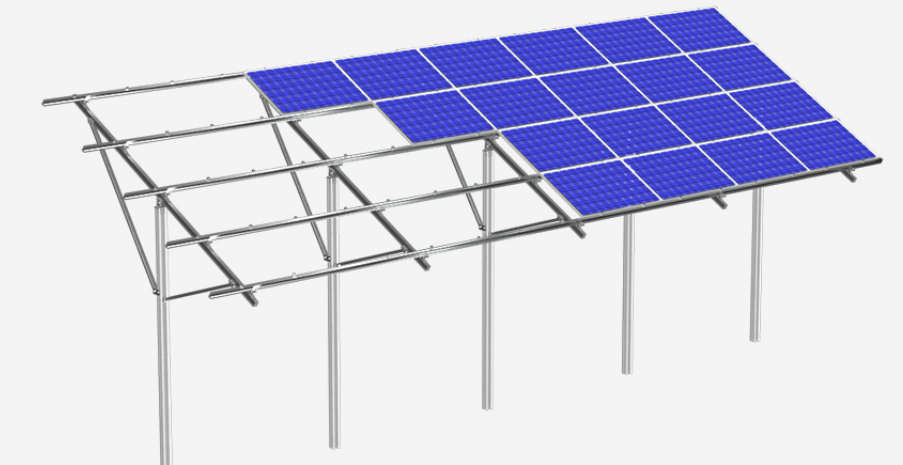

The MRac PGT2 Ground Solar Mounting System is a highly pre-assembled, single-pile racking solution designed for large commercial and utility-scale photovoltaic (PV) installations. Fabricated from high-strength anodized aluminum, it delivers outstanding corrosion resistance, structural stability, and long-term durability — ideal for harsh outdoor environments.

Its patented single-pile design minimizes ramming time and foundation work, helping reduce installation costs and accelerate project timelines.

🔧 Key Features

✅ Factory Pre-Assembled Components
Most parts are pre-assembled before delivery — no on-site cutting or drilling required, which significantly shortens installation time and lowers labor costs.

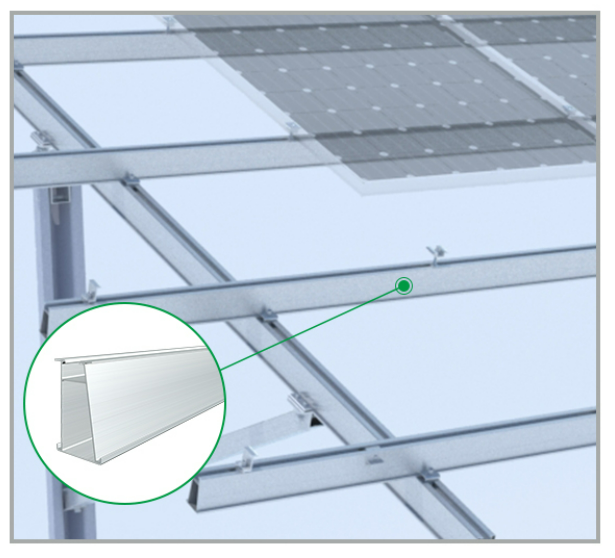

✅ Symmetrical Rail Design
The symmetrical rail system ensures optimal strength while reducing material usage, resulting in a more cost-effective structure.
✅ Single-Pile System Efficiency
The single-pile structure cuts ramming and groundwork time in half compared to dual-pile systems, offering substantial construction cost savings.
✅ Flexible Configuration Options

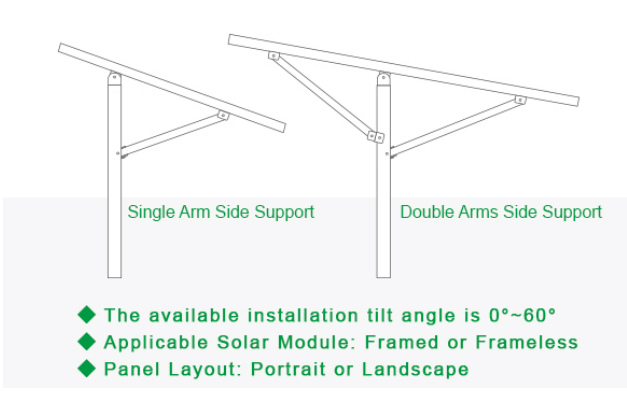

Supports single or double embrace bar setups, adaptable to different project site conditions and design needs.
✅ Wide Module Compatibility
Designed to support framed 60-cell, 72-cell, half-cut cells, and frameless solar modules using MRac universal clamps.

📐 Technical Specifications

Specification	Details
Mount Type	Ground, utility-scale
Material	Anodized Aluminum Alloy
Design	Pre-assembled, single-pile system
Installation	Clamp-based, no drilling or site cutting required
Module Orientation	Landscape (horizontal), adaptable to site layout
Wind Load	Up to 60 m/s (customizable by project)
Snow Load	Up to 1.6 kN/m² (with reinforcement options)

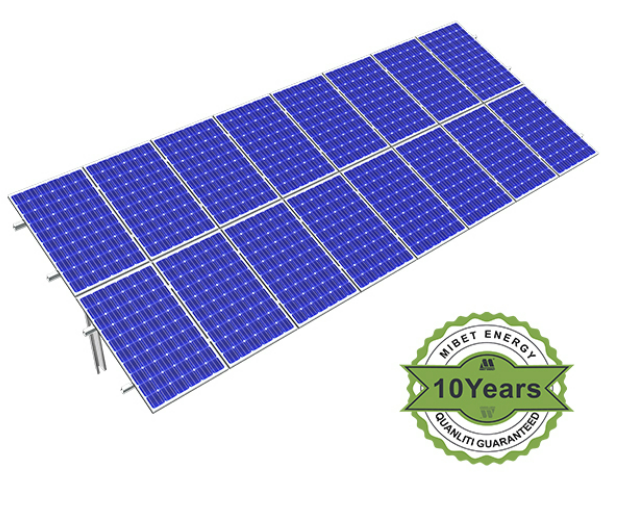

Warranty	10 Years
