Reliable, Adjustable, and Engineered for Large-Scale Solar Installations
The MRac GT1 Ground Solar Mounting System is purpose-built for large-scale and utility-scale PV projects, offering exceptional strength and long-term durability. Featuring an adjustable base and made of hot-dip galvanized Q235B steel, this system provides high corrosion resistance and structural integrity, even in harsh environmental conditions.
With a modular and flexible layout, GT1 is compatible with various solar module types and ground conditions, making it a versatile and cost-effective mounting solution for ground-based solar farms.
✅ Key Features & Benefits
🧩 Broad Compatibility
Supports framed 60-cell, 72-cell, half-cut cells, and frameless solar panels.
🛠 Pre-Assembled Components

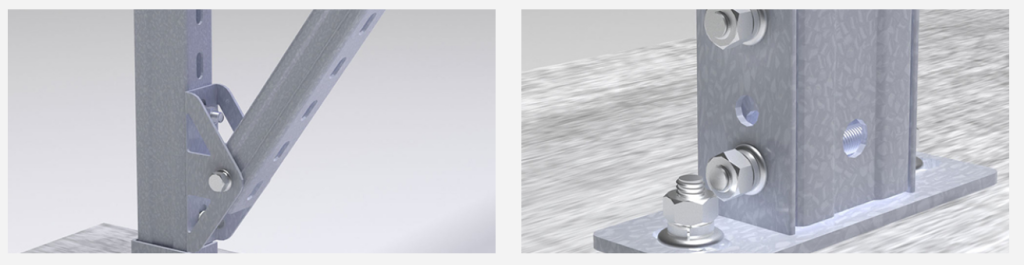

Major components are factory pre-assembled, eliminating the need for onsite cutting or drilling, saving installation time and labor.
🌀 Adjustable Structure
Allows for east-west and north-south adjustment to achieve optimal solar orientation and maximize yield.
🏗 Strong & Durable
Manufactured from high-quality hot-dip galvanized Q235B steel for enhanced stability and long service life.
🌍 Versatile Ground Use
Adaptable to different terrains and soil types, with high utilization efficiency of land space.
📐 Technical Specifications
| Parameter | Details |
|---|---|
| Mounting Location | Open fields, utility-scale ground installations |
| Main Material | Hot-dip galvanized Q235B steel |
| Applicable Modules | Framed, half-cell, frameless PV modules |
| Installation Angle | Adjustable |
| Wind Load | Up to 60 m/s |
| Snow Load | Up to 1.4 kN/m² |
| Warranty | 10 years quality warranty |
| Service Life | 25+ years |

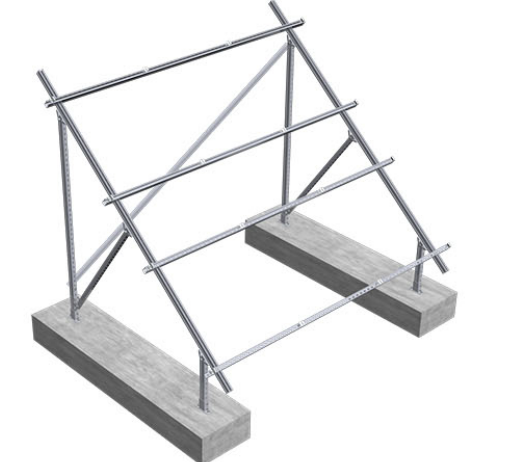

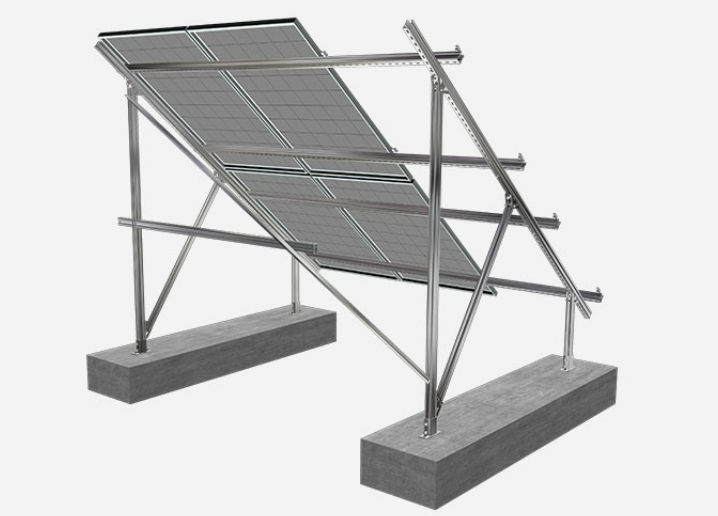

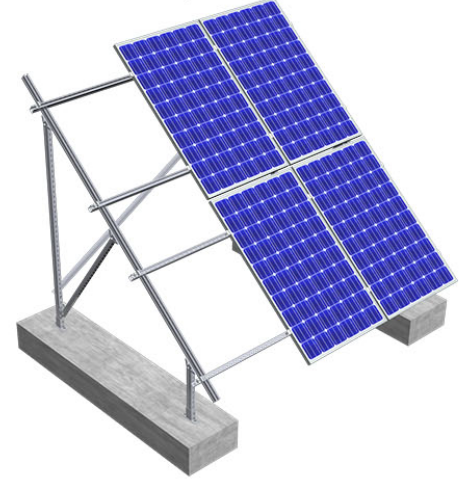

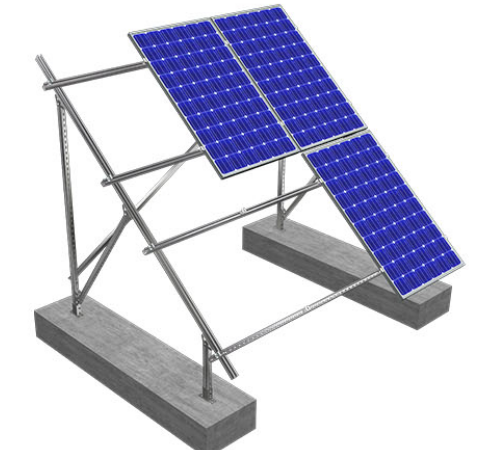

📸 System Preview&Project Reference
