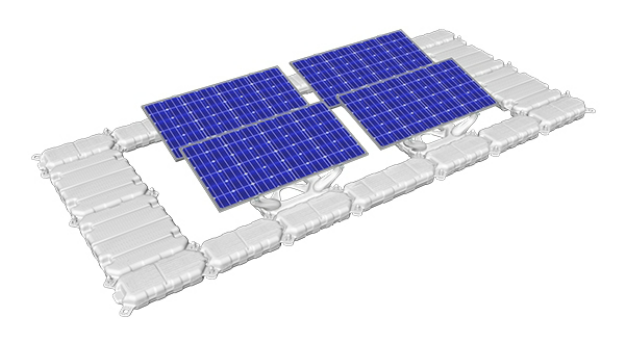

MRac Floating Solar Mounting System G4N+ Details
The Mibet G4N+ Floating Solar Mounting System features an innovative floating bridge design crafted with high-density polyethylene (HDPE) material. This material has passed rigorous testing, including the Hunter water absorption test, anti-aging tests, and UV resistance tests. It has been proven to endure tensile stress levels significantly higher than other products, granting the floating bridge exceptional durability for outdoor use. The system is UV resistant, ensuring longevity with a lifespan exceeding 25 years.
The floating pontoon system is strategically designed with an opening area greater than 30%, allowing ample sunlight to penetrate and reach marine life below. Additionally, this structure helps reduce water evaporation and leverages the cooling effect of water to enhance the power generation efficiency of the solar farm.
A standout feature of the MRac Floating Solar Mounting System G4N+ is its ease of assembly, which significantly reduces installation time. It can be configured into various layouts, such as single-row or double-row, based on user preferences and site requirements.
The system offers both mooring and anchoring options, with solutions tailored to match the specific characteristics of each water body. This ensures the system can resist environmental forces and wave activity while providing a stable platform for solar panels.

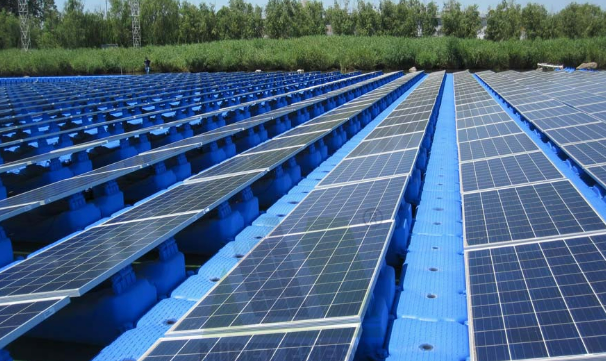

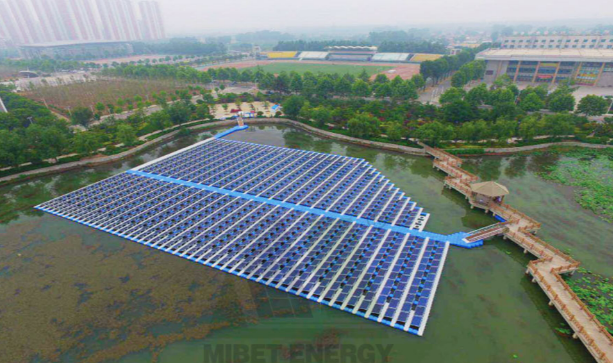

Project Reference
Project Reference
MRac Floating System G4N+ Features
- Modular Design:
The system uses a simple, convenient splice installation method, allowing easy assembly and flexibility for different configurations. - Increased Buoyancy:
The design increases the floater volume to provide additional buoyant force, ensuring the system remains stable in water. - Durable Material:
The floaters are made from high-density polyethylene (HDPE), a robust material that guarantees a long service life and excellent durability. - Flexible Layouts:
The system supports various array designs, including single-row or double-row layouts, making it easier to adapt to the available space. - Symmetrical Facing Array:
This design maximizes power generation by enhancing the installation capacity and efficiency, while the symmetrical array ensures optimal solar panel alignment. - Compatible with Various Solar Modules:
The system is compatible with a wide range of solar modules, helping to reduce costs and enhance flexibility. - Strong Weather Resistance:
The system is designed to withstand extreme weather conditions, ensuring reliable operation in various climates. It is also easy to maintain and operate.
Anchoring System
The MRac Floating Mounting System will be anchored using an anchoring system that can be tailored to the specific water area conditions.
- Underwater Anchor Point:
Typically, anchor points are placed underwater, but above-water anchor points can also be used depending on the site conditions.
The installation of the anchoring system is designed based on the water level variations, with the following options:
- For water level variation less than 1 meter:
Use a sunken anchor or stone with a rope to secure the system. - For water level variation less than 3 meters:
Use a sunken anchor or stone with rope and an additional elastic spring for enhanced stability. - For water level variation greater than 3 meters:
Use a sunken anchor or stone with a capstan rope to ensure secure anchoring.
