Highly Efficient and Durable Floating Solar System for Water-Based Installations
The MRac Floating PV Mounting System G5 is engineered for solar PV power plant installations on bodies of water. Constructed with HDPE, POSMAC, or hot-dip galvanized steel, this system is designed to withstand environmental challenges while offering superior strength and buoyancy. It has successfully passed rigorous tests, including the Hunt Water Absorption Test, Aging Test, and Anti-UV Test, ensuring its long-term reliability and durability.
The G5 system’s modular design enables easy assembly with increased buoyant force and enhanced power generation efficiency. Its flexible design allows for double-row arrays, either in the same-facing or symmetrical-facing configurations, and features full or interval maintenance walkways. With a service life of over 25 years, it is a cost-effective, low-maintenance solution that can optimize solar power generation on water surfaces.
🔩 Key Features
✅ Modular Design for Easy Installation
The modular components of the system are simple to assemble, facilitating quick and hassle-free installation.
✅ Enhanced Buoyancy for Stability
By increasing the volume of the floater, this system ensures superior buoyant force, providing the necessary stability for large-scale floating solar farms.
✅ Long-lasting Materials
The system is made from HDPE, POSMAC, or hot-dip galvanized steel, providing exceptional resistance to UV rays and aging, ensuring that it lasts for over 25 years.
✅ Wide Compatibility with Solar Modules
The G5 system is designed to accommodate various types of solar modules, which helps reduce costs and offers greater flexibility in solar panel selection.
✅ Optimized for Maintenance
The system supports both full and interval maintenance walkway designs, improving accessibility and simplifying system maintenance.
✅ Strong Weather Resistance
Built to perform reliably in harsh weather conditions, the G5 system guarantees durability and consistent performance in various environmental settings.
📐 Technical Specifications
| Feature | Specification |
|---|---|
| Material | HDPE, POSMAC, or hot-dip galvanized steel |
| Floater Volume | Increased for enhanced buoyant force |
| System Lifetime | 25+ Years |
| Array Configuration | Double-row, same-facing or symmetrical-facing |
| Maintenance Walkway Options | Full or interval maintenance walkways |
| Solar Module Compatibility | Compatible with various solar modules |
| Weather Resistance | Strong resistance to UV, aging, and extreme weather conditions |

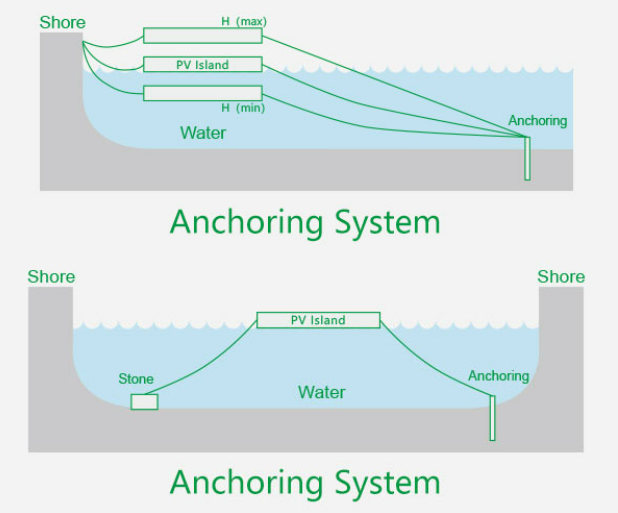

| Anchoring System | Sunken anchor or stone with rope; optional elastic spring or capstan rope for varying water levels |
💡 Ideal Applications
- Large-scale floating solar power plants on lakes, reservoirs, and other bodies of water
- Water-based solar installations where land is scarce or unavailable
- Sites with varying water levels, providing flexibility in anchoring design
- Commercial and residential projects requiring reliable and durable solar energy solutions
📞 Need a Customized Floating Solar Solution?
Explore the MRac G5 Floating Solar Mounting System with expert guidance from Mibet Energy:
✅ Site-specific design to optimize system layout and power generation
✅ Professional consultation for anchoring system design and maintenance planning
✅ Comprehensive support throughout installation, operation, and maintenance
