Solution Introduction

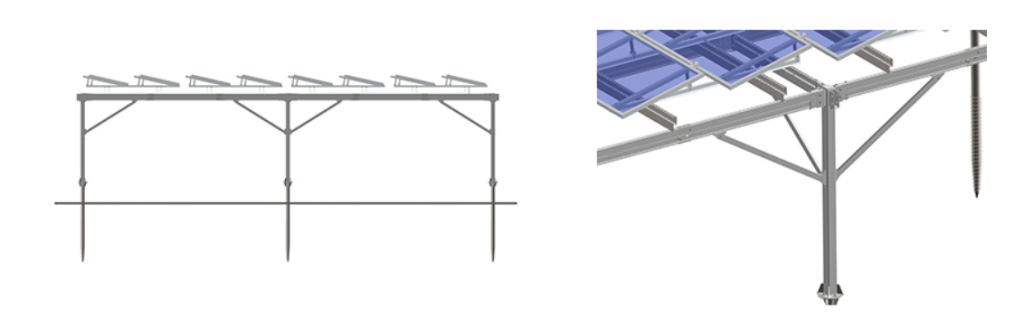

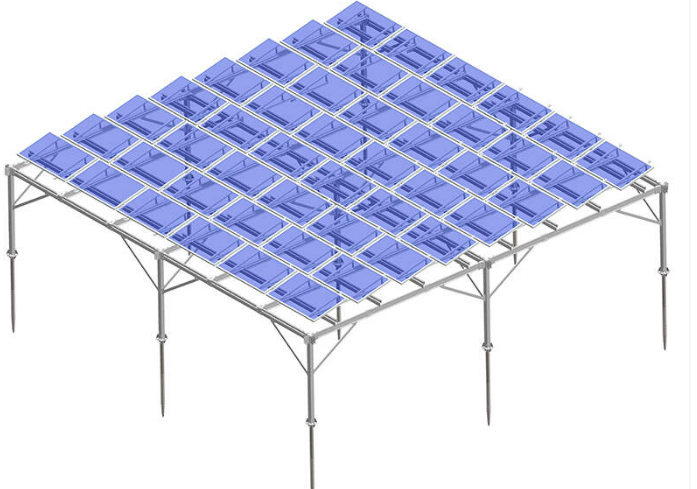

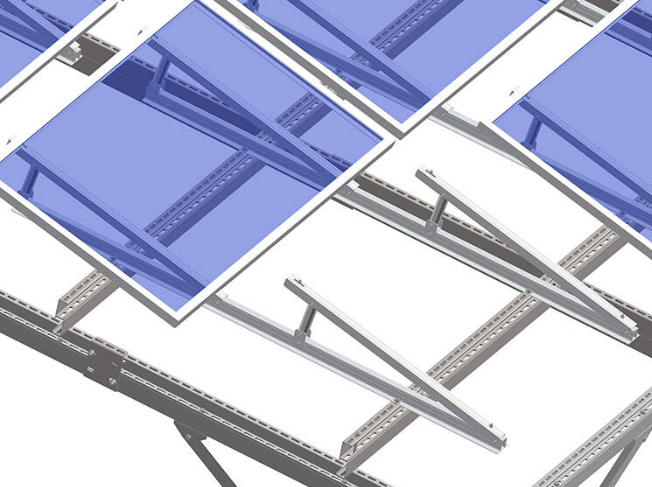

The C Type Carbon Steel Agricultural Mounting System is a high-strength, cost-effective solution tailored for solar farms. Designed to accommodate agricultural machinery movement underneath, this mounting structure supports efficient crop growth and solar power generation simultaneously. Pre-assembled top triangle kits and a modular frame make installation faster and more flexible in rural and uneven terrain.
Key Features
- Agriculture-Friendly Design
Optimized spacing and height to allow farm vehicles and equipment to operate freely under the structure. - Robust & Durable Materials
Manufactured with 80μm hot-dip galvanized carbon steel and stainless steel 304 fasteners for superior corrosion resistance. - Economical Structure

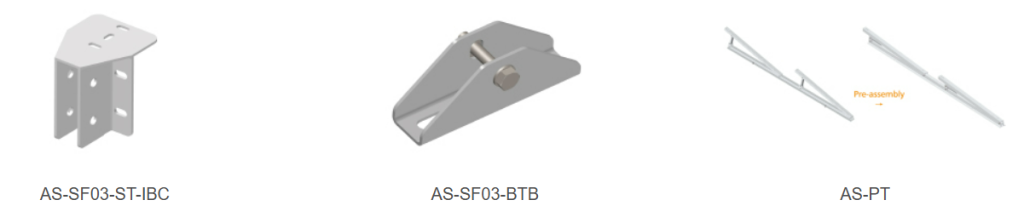

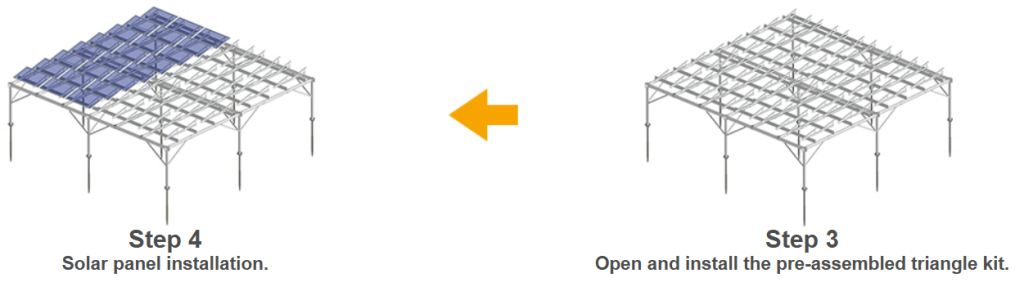

The simplified design with pre-assembled triangle kits reduces on-site labor and speeds up installation. - Custom-Fit Module Support
Compatible with framed and thin-film modules in both landscape and portrait orientations. - Built to Withstand Harsh Weather
Rated for up to 60 m/s wind speeds and 1.5 kN/m² snow loads under international engineering standards.
Technical Specifications
| Category | Specification |
|---|---|
| Structure Type | C-Type Steel – Solar Agricultural Mount |
| Module Compatibility | Framed & Thin-Film Modules |
| Material | Carbon Steel, Anodized Aluminum 6005-T5, Stainless Steel 304 |
| Surface Treatment | 80μm Hot-Dip Galvanizing, 10μm Anodized Aluminum |
| Color Options | Silver, Black, or Customized |
| Module Orientation | Landscape / Portrait |
| Wind Load | Max 60 m/s |
| Snow Load | Max 1.5 kN/m² |
| Standards | AS/NZS 1170.2, CE, SGS, DIN 1055, JIS |
| Warranty | 20 Years Product Warranty |
| Lead Time | 7–15 Days (LCL), 20 Days (FCL) |
| Shipping Port | Xiamen Port, China |
| Payment Terms | 100% T/T or L/C at Sight |
Applications
- Large-Scale Agricultural PV Farms
- Dual-use Solar & Crop Cultivation Projects
- Remote Rural Solar Installations
- Community Solar Projects with Farming Integration
Why Choose This System?
✅ Boost Solar Yield + Crop Production
✅ Lower Cost per kW Installed
✅ Fast, Scalable Deployment
✅ Globally Compliant Engineering Standards
🚀 Get a Free Quote Today
Power your farm and protect your land investment with this high-efficiency carbon steel agricultural solar solution — built for farmers, by solar structure professionals.
