Durability Meets Performance in Every Installation
Looking for a solar carport that not only generates clean energy but also protects your vehicle from the elements? The UI-Waterproof Carport System, designed and manufactured , brings together high-strength aluminum alloy, integrated water drainage, and reinforced windproof design—perfect for both commercial and residential installations.
Built for Harsh Environments
This solar carport mounting structure uses high-grade AL6005-T5 aluminum and SUS304 stainless steel fasteners, offering exceptional resistance to corrosion, water, and high winds. With an aerodynamic design and optional drainage panels, this system delivers year-round protection while generating clean power.

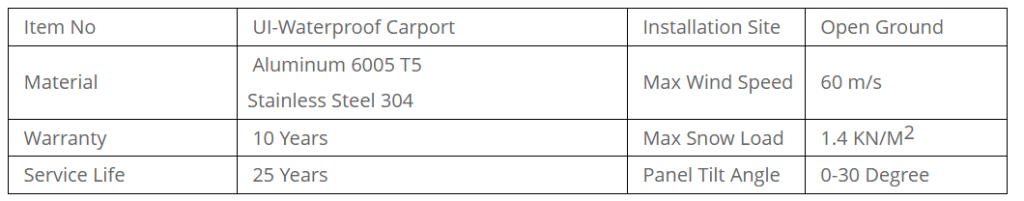

Technical Specifications
| Parameter | Specification |
|---|---|
| Product Code | UI-Waterproof Carport |
| Installation Location | Open Ground |
| Main Materials | Aluminum 6005-T5, Stainless Steel 304 |
| Tilt Angle | 0–30° Adjustable |
| Wind Load Capacity | Up to 60 m/s (Typhoon-rated) |
| Snow Load Capacity | Up to 1.4 kN/m² |
| Service Life | 25 Years |
| Warranty | 10 Years |
| Functionality | Power generation + Vehicle shelter + Waterproof + Windproof |
Key Features

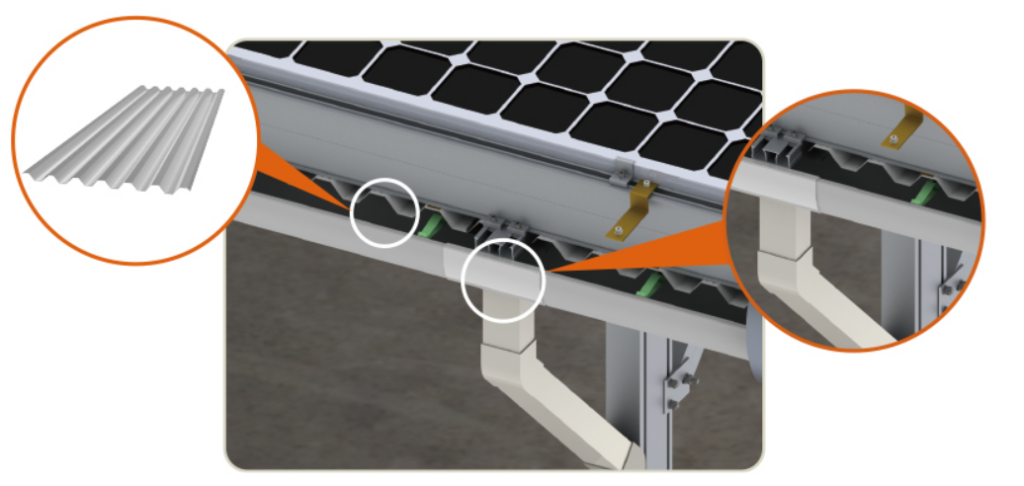

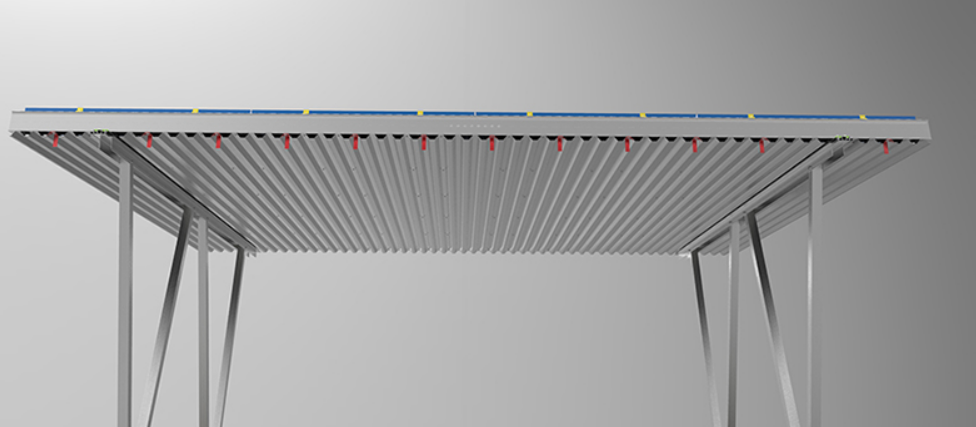

Waterproof Roof Design
Equipped with metal roof sheets and optional waterproofing gaskets, the structure channels rainwater away, protecting vehicles and enhancing site safety.

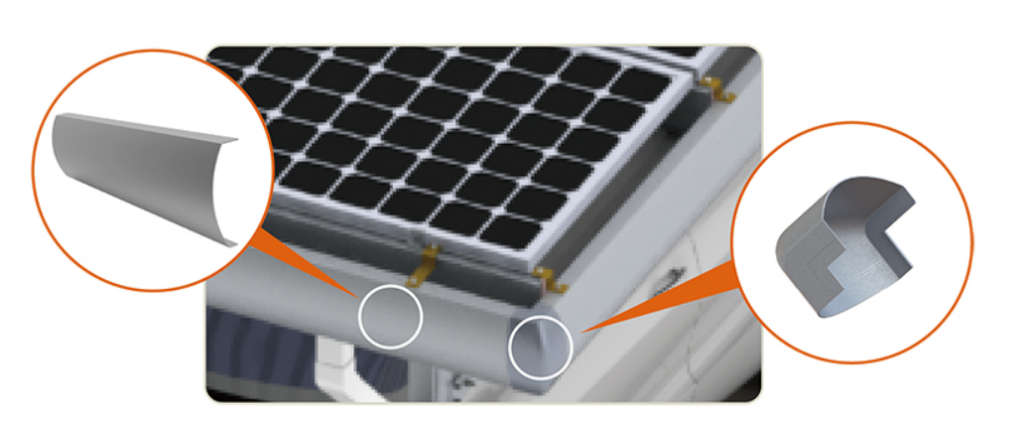

Windproof Engineering
Built to withstand high wind zones (up to 60 m/s), the system incorporates reinforced beams and secure anchoring methods, ensuring structural integrity in extreme weather.
Easy Installation & Pre-Assembly
Most components are pre-assembled at the factory, reducing site labor and installation time. The modular design supports fast deployment for large-scale or multi-bay carports.
All-in-One Protection & Energy Solution
This isn’t just a carport—it’s a multifunctional energy platform. The UI-Waterproof Carport integrates:
- Vehicle protection from sun, rain, wind, and snow
- Grid-connected or off-grid solar power generation
- Optional EV charger mounting
- Clean aesthetics suitable for urban or industrial areas
Whether you’re planning a solar-powered residential driveway, a commercial parking lot, or a government EV charging station, this system delivers both performance and protection.
No Engineering Skills Needed — We’ll Handle the Design
To get started, simply tell us:
- The number and type of solar panels you plan to use
- Site dimensions or layout sketch
- Local wind and snow conditions
- Desired clearance height and tilt angle
Our manufacturers will prepare a full structural design with 3D drawings and load calculations based on your project specs. You’ll receive a complete quotation and installation-ready solution—with no design experience required.
Inquire Now — Get Your Custom Quote in Days
Click the “Get Quote” button to submit your requirements.
You’ll receive detailed carport designs and competitive factory pricing from a trusted global supplier.
