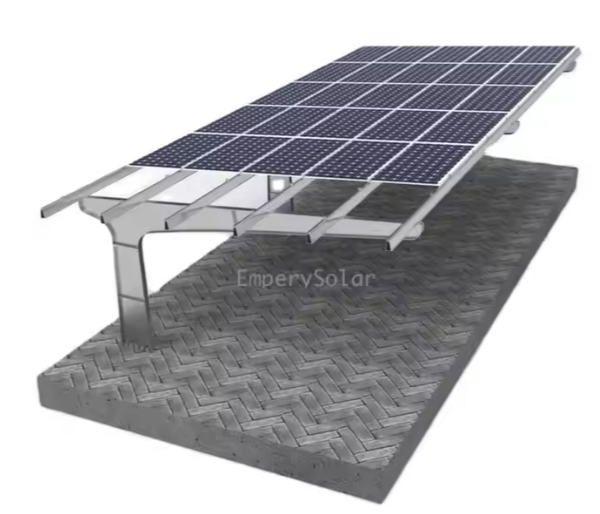

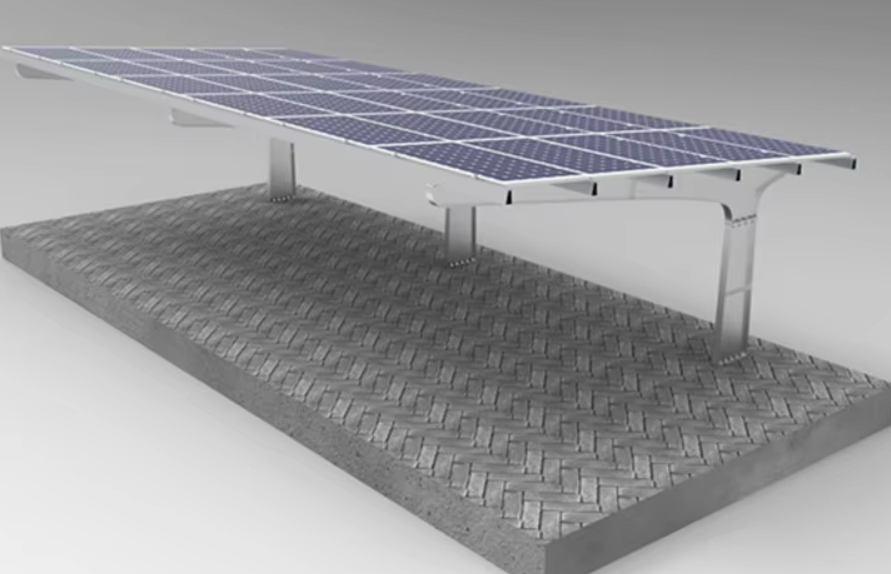

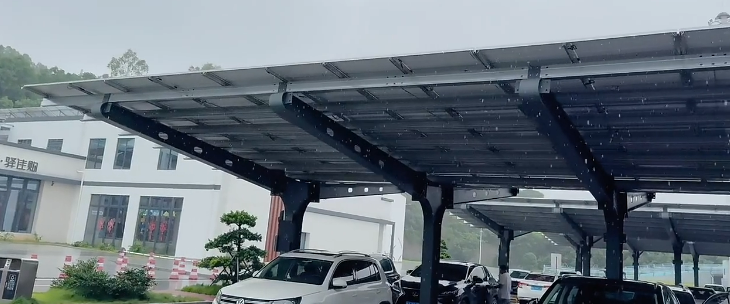

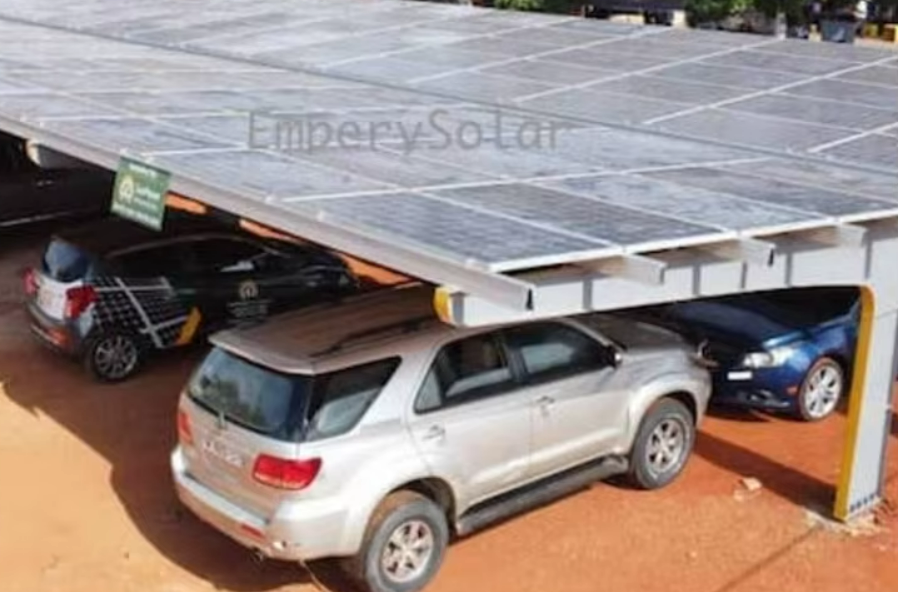

Empery Solar’s carbon steel solar carport mounting system is engineered for durability, reliability, and high performance in outdoor solar energy applications. Constructed with a robust combination of AL6005-T5 aluminum alloy and Q235B galvanized carbon steel, this structure delivers superior strength and corrosion resistance, even under extreme weather conditions such as high winds (up to 60m/s) and heavy snow (up to 1.4KN/m²).
Technical Structure & Materials: Engineered for Strength and Longevity

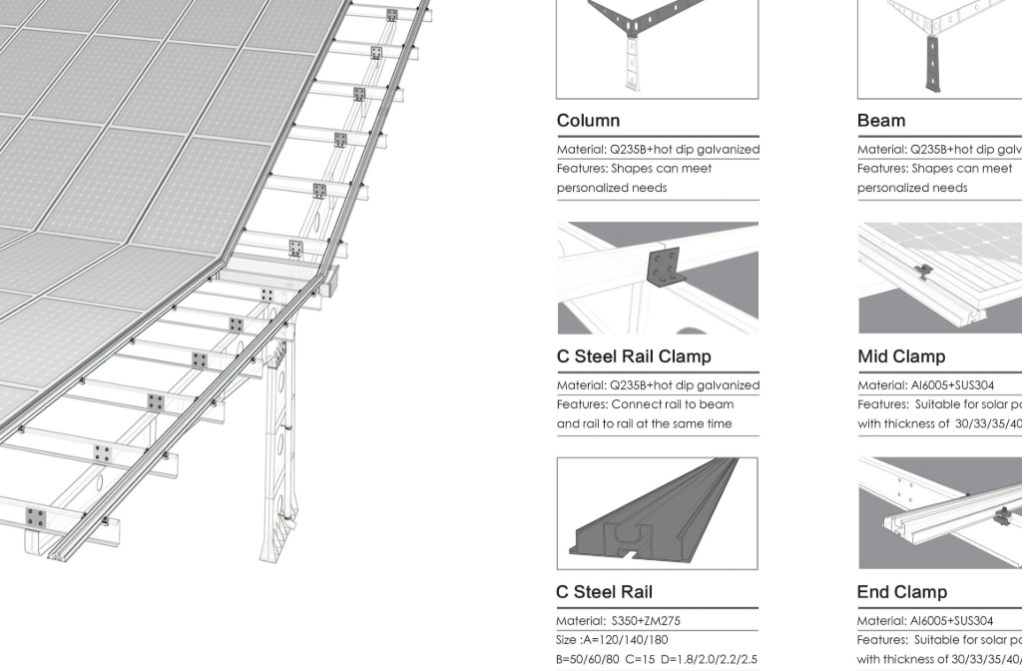

- High-Strength Materials: The main frame is built from aerospace-grade AL6005-T5 aluminum and Q235B carbon steel, combining lightweight properties with exceptional structural integrity.
- Corrosion Resistance: All components undergo anodized or hot-dip galvanized surface treatment, ensuring long-term resistance against rust, salt, and moisture — ideal for coastal or high-humidity regions.

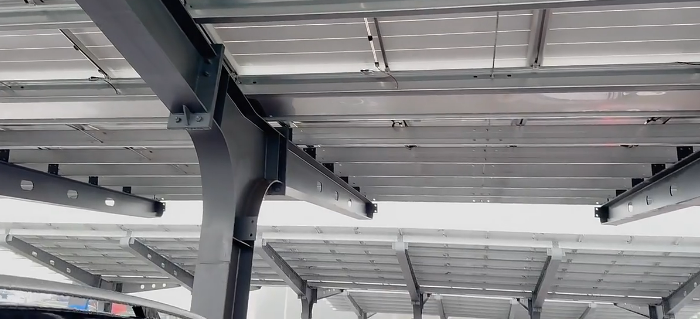

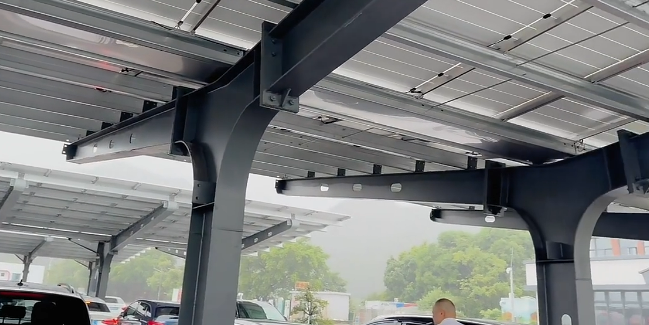

- Modular Design: Features a modular, bolt-together system that eliminates the need for on-site welding. This not only ensures precision and consistency but also reduces installation time and labor costs.
- Wide Compatibility: Supports both framed and frameless PV modules in customized sizes and various orientations (portrait or landscape), offering maximum design flexibility.
- Electrical Output Support: Compatible with systems delivering 110V to 220V output voltage, suitable for commercial or residential power requirements.
Key Specifications
- Wind Load: Up to 60 m/s
- Snow Load: Up to 1.4 KN/m²
- Tilt Angle: 5°, 10°, or 15° (customizable)
- Ground Clearance: 2.0m to 3.5m
- Material Finish: Anodized aluminum & hot-dip galvanized steel
- Warranty: 10-year structural warranty
- Design Standards: In compliance with BS 6399-2-1997 & AS/NZS1170
