As renewable energy becomes increasingly integrated into modern infrastructure, solar carport systems have emerged as dual-purpose solutions that combine parking convenience with sustainable power generation. Our customizable aluminum alloy solar carport mounting solution is designed to deliver structural integrity, optimized performance, and long-term economic benefits — all while meeting the real needs of users and project developers.
🔧 Technical Perspective: Engineered for Strength, Efficiency, and Durability
▶ High-Grade Materials & Robust Design
Constructed with high-strength AL6005-T5 aluminum alloy and SUS304 stainless steel fasteners, the system provides excellent corrosion resistance and mechanical stability. Its anodized surface treatment ensures lasting performance in various environmental conditions, particularly humid or coastal regions.
- Wind Resistance: Up to 60m/s
- Snow Load Capacity: Up to 1.4 kN/m²
- Design Standard: JISC 8955-2017 (Design Guide for PV Array Structures)
- Service Life: 25 years
- Warranty: 10 years
▶ Waterproof Structural Integration
The system features an integrated waterproof design to effectively channel rainwater and protect both vehicles and structural components from moisture-related damage.

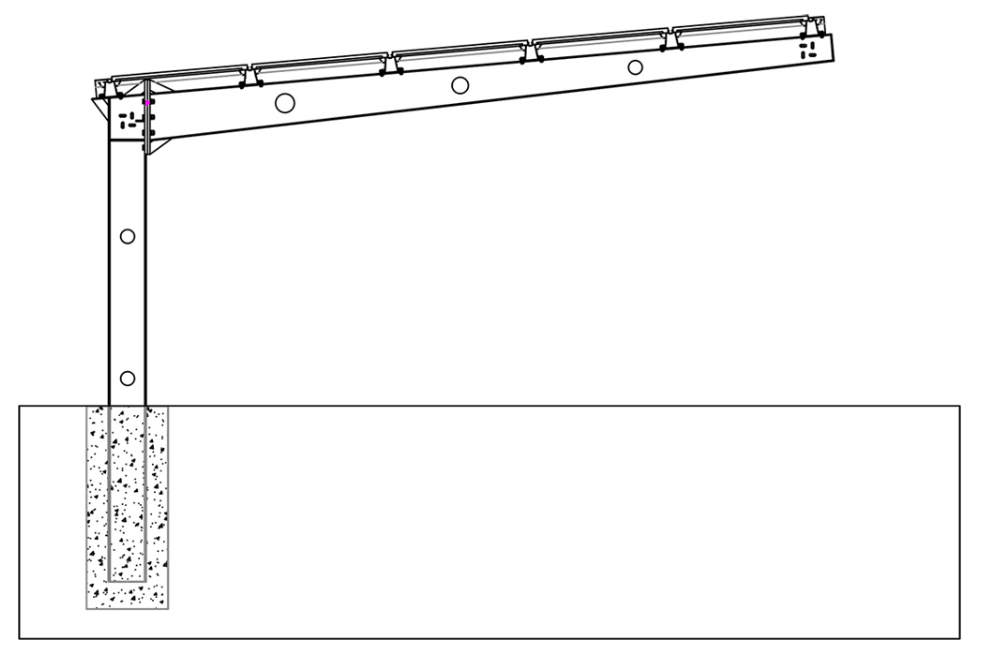

▶ Modular & Customizable Design
We offer flexible configurations including single, double, triple, four, or N-parking spaces, tailored to fit different site sizes, project types, and PV module dimensions. Ideal for commercial, industrial, or residential applications.
👥 User Perspective: Practical Benefits, Energy Savings, and Long-Term Value
✅ 1. Dual Functionality: Shelter + Energy
While providing durable shade and protection for vehicles, the system also enables clean energy generation, reducing utility costs and supporting EV charging infrastructure.
✅ 2. Cost-Effective Over Time
Though the upfront investment is higher than conventional carports, the system generates ongoing electricity savings. The average payback period is 5–7 years, with decades of clean energy production thereafter.
✅ 3. Fast Installation, Low Maintenance
Thanks to its modular and pre-engineered components, the system enables quick installation with minimal labor. Routine maintenance includes basic panel cleaning and structural inspections, keeping operational costs low.
✅ 4. Modern Aesthetics & Versatile Application
Sleek design options and multiple surface finishes make it an attractive solution for modern buildings. Perfect for green building upgrades and sustainable urban planning.
📦 Technical Overview
| Specification | Description |
|---|---|
| Material | AL6005-T5 aluminum alloy, SUS304 stainless steel components |
| Foundation Options | Concrete base or ground screw piles |
| Surface Treatment | Anodized |
| Wind Load Resistance | Up to 60m/s |
| Snow Load Resistance | Up to 1.4 kN/m² |
| Panel Compatibility | Supports most module sizes (Length ≤2200mm, Width ≤1313mm) |
| Service Life | 25+ years |
| Warranty | 10 years |
| Certifications | ISO9001, CE, SGS, UL, JISC8955-2017 |

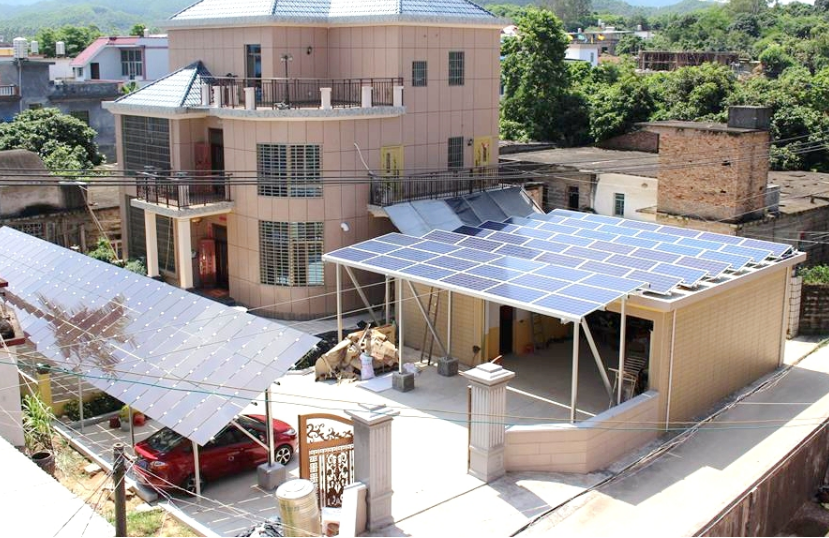

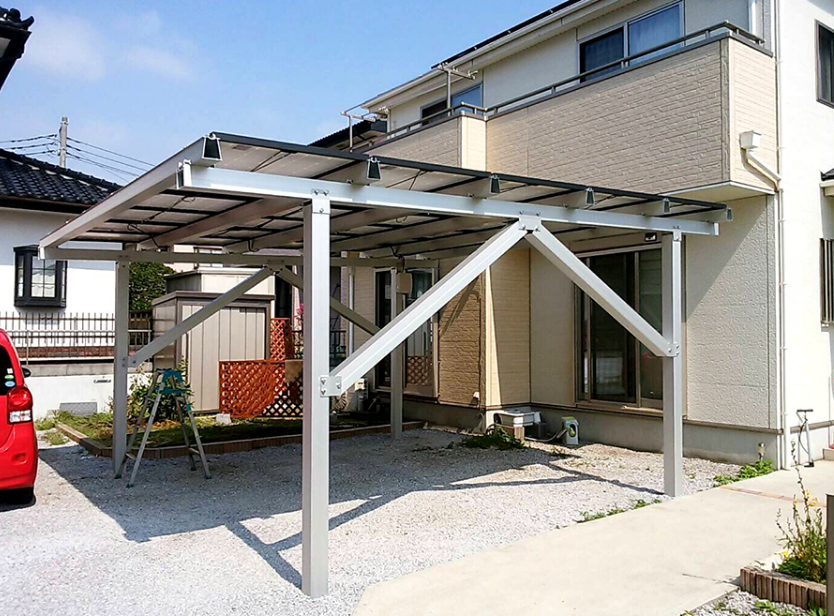

📌 Applications
- Commercial and shopping mall parking lots
- Office and industrial park EV charging stations
- Residential villas and communities
- Government buildings, schools, and hospitals
