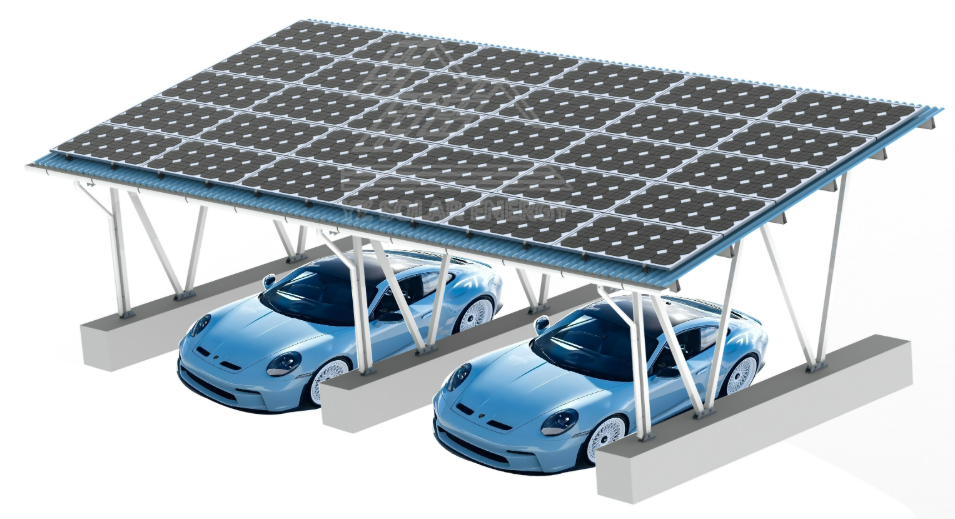

The YZSolar Aluminum Solar Carport Mounting System is a premium solution tailored for solar power generation in parking areas. Designed with a focus on structural integrity, ease of installation, and material optimization, this system uses AL6005-T5 aluminum alloy and SUS304 stainless steel to deliver maximum durability with minimal maintenance. It supports a variety of carport configurations—from single-span to multi-car structures—making it an ideal choice for shopping centers, factories, commercial complexes, and residential communities.
Why Choose Aluminum for Solar Carport Structures?
Unlike traditional galvanized steel, aluminum alloy (AL6005-T5) offers a lightweight yet high-strength alternative that is naturally corrosion-resistant. This makes it particularly well-suited for long-term outdoor applications, especially in coastal or humid environments.
- Lighter weight reduces the stress on foundations and simplifies transportation and on-site handling.
- Anodized surface treatment enhances resistance to oxidation and improves longevity.
- Recyclability of aluminum supports sustainable development goals and reduces environmental impact.
Key Features of YZSolar Aluminum Carport Mounting System
✔ High Strength, Low Weight
Engineered with AL6005-T5 aluminum profiles, this carport mounting system ensures outstanding structural integrity without adding excessive load. It’s ideal for both ground-mounted and rooftop parking installations.
✔ Superior Corrosion Resistance
Aluminum’s natural oxide layer protects the surface from rusting, ensuring decades of weatherproof performance with minimal maintenance—ideal for regions with high humidity or saline environments.
✔ Optimized Installation Efficiency

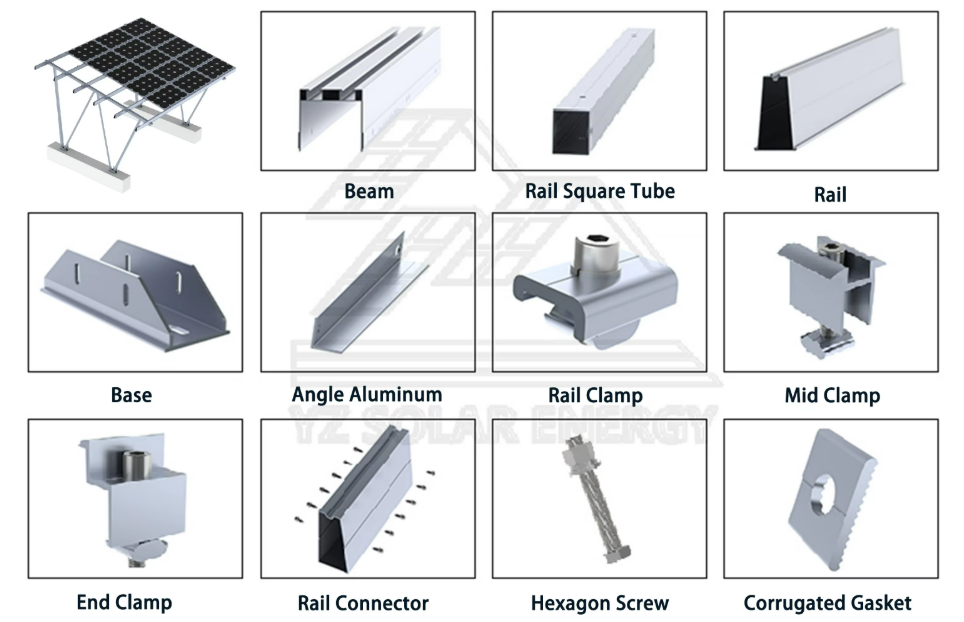

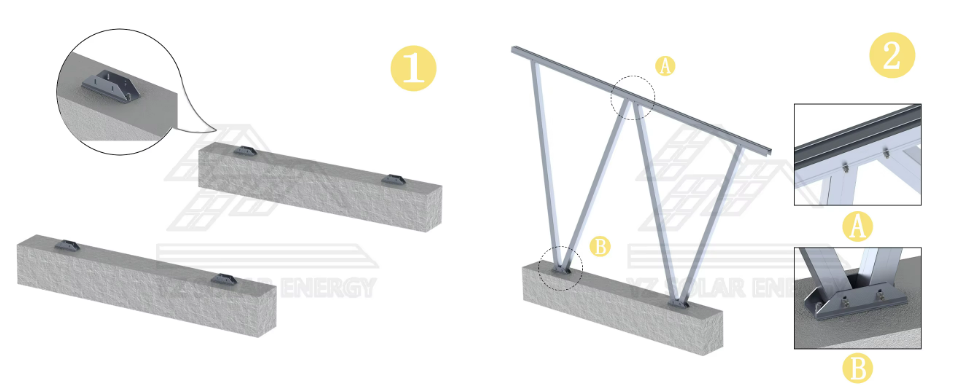

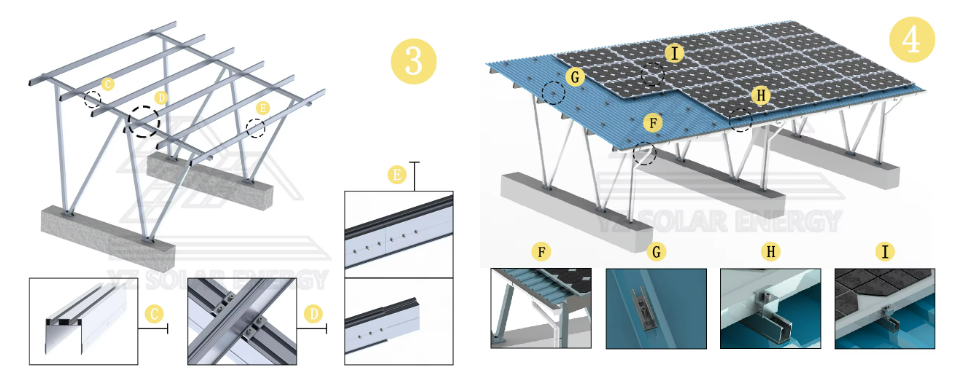

A modular, pre-assembled design with standardized components allows for quick and easy installation. Built-in nuts and simplified fasteners mean that only one tool is required, reducing labor costs and installation time.
✔ Customizable Configuration
Available in single- and double-bay formats, and compatible with framed or frameless PV modules. Custom tilt angles (0°–15°) and dimensions are offered based on site conditions and energy yield targets.
✔ Cost-Effective & Future-Ready
Combining low material density with high lifecycle durability, aluminum solutions may offer better long-term ROI compared to steel when factoring in lower transportation, easier handling, and extended service life.
Product Specifications
| Parameter | Details |
|---|---|
| Material | AL6005-T5 / SUS304 |
| Surface Treatment | Anodized Silver |
| Snow Load | 1.5 kN/m² |
| Wind Load | Up to 60 m/s |
| Foundation | Concrete blocks or ground screws |
| Tilt Angle | 0° – 15° (customized) |
| Compatible Modules | Framed / Frameless PV panels |
| Warranty | 10 Years |
| Installation Site | Open field, parking lots |
| Certificates | TUV / CE / ISO |
Service & Support
- Pre-Assembly Service: All main parts can be pre-assembled to speed up on-site work.
- Engineering Assistance: One-on-one structural and layout design tailored to your site.
- Global Delivery: Short lead times backed by YZSolar’s in-house production.
- Flexible Business Models: OEM, wholesale, and retail partnerships available.
Conclusion
The YZSolar Aluminum Solar Carport Mounting System is a smart investment for projects demanding high performance, low maintenance, and sustainable solar integration. With superior materials, simplified installation, and a focus on long-term value, it’s the perfect solution for turning underutilized parking areas into renewable energy assets.
