Brand: Amoy
Product Origin: China
Delivery Time: 10 Days
Installation Site: Ground
Tilt Angle: 5°–60°
Max Wind Speed: 60 m/s
Max Snow Load: 1.5 KN/m²
Material: Anodized Aluminum (AL6005-T5) & Stainless Steel (SUS304)
Surface Treatment: Anodized
Certifications: AS/NZS1170, Intertek, SGS, Gamcorp, MCS, SPAD
Warranty: 10 Years
Service Life: Over 25 Years
☀️ Product Overview

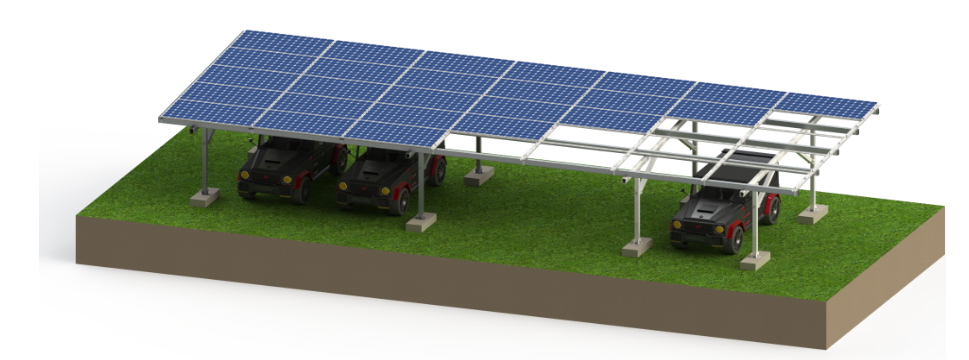

The Amoy Aluminum BIPV Car Shed Mounting System is a highly durable and versatile solution that transforms your parking area into a green energy generator. Engineered for dual-functionality, it offers both vehicle protection and solar power generation, ideal for residential, commercial, and institutional applications.
With its BIPV (Building-Integrated Photovoltaics) design, this system integrates solar modules directly into the structure, replacing traditional roofing and maximizing land use efficiency. The structure also supports optional features like internal rainwater drainage, lighting, and EV charging ports, making it a modern, multifunctional energy solution.
✅ Key Features
- Dual-Purpose Design
Provides shade and protection for vehicles while generating clean solar energy. - BIPV Integration
Solar modules function as the roof, eliminating the need for extra canopy materials and enhancing visual appeal. - Long-Lasting Durability
Made from anodized aluminum and SUS304 stainless steel, ensuring corrosion resistance, low maintenance, and eco-friendly recyclability. - Flexible & Scalable
Adaptable for single or double parking rows and compatible with most framed or frameless PV modules. - Pre-Assembled for Speed
Most components are pre-assembled in the factory, reducing on-site labor and installation time. - High Tolerance Adjustment
Allows vertical and horizontal flexibility to accommodate uneven terrain or structure misalignment.
🚘 Applications
- Residential Carports
- Commercial Parking Lots
- Educational Campuses
- Government Facilities
- EV Charging Stations
📦 Specifications Summary
| Attribute | Details |
|---|---|
| Installation Site | Ground |
| Tilt Angle | 5° – 60° |
| Max Wind Load | 60 m/s |
| Max Snow Load | 1.5 KN/m² |
| Material | AL6005-T5 & SUS304 |
| Surface Finish | Anodized |
| Certifications | AS/NZS1170, Intertek, SGS |
| Warranty | 10 Years |
| Expected Lifetime | 25+ Years |
💬 FAQs
Q: What is a PV Carport?
A: A PV carport is a parking structure integrated with solar panels on its roof, offering both vehicle protection and electricity generation.
Q: How many solar panels do I need for a carport?
A: Approximately 3 panels can cover one parking spot. A typical 2-row carport may use 6–8 panels, but final designs vary based on site size and energy needs.
Q: What information is required for a quotation?
- PV panel dimensions (L × W × Thickness)
- Number of panels
- Ground/roof clearance preferences
- Desired tilt angle
- Panel layout (No. per row × No. of rows)
- Site conditions (Wind speed, snow load)
Q: Why choose Amoy?
- Source factory for quality control
- Custom design solutions
- Wide system compatibility
- Fast, simple installation
- Long warranty & lifecycle
- Free samples & tailored services available
