Description

Packaging & Delivery | Solar Carport System for Home

• Package Size: 25.00cm × 20.00cm × 27.00cm

• Package Gross Weight: 20.000kg

Product Description:

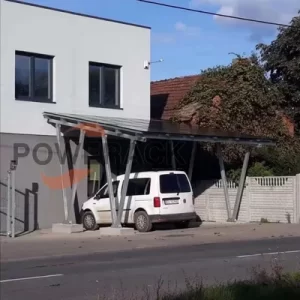

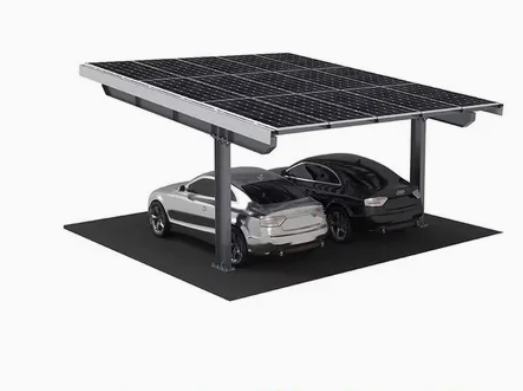

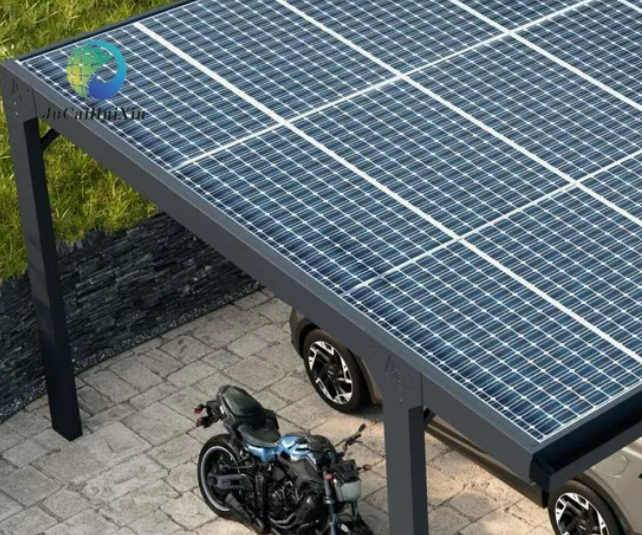

The JCHX Aluminum Black Photovoltaic Carport System is specially designed for residential use, featuring a high-strength 6063-T5 aluminum alloy frame with a modular structure. This system integrates solar power generation, sun shading, and vehicle protection in one solution. Equipped with single or double-sided photovoltaic modules on top, it efficiently meets household electricity needs and supports electric vehicle charging. The sleek matte black finish enhances modern aesthetics, making it ideal for villas, courtyards, and other home environments. It supports quick installation and flexible expansion.

Key Features:

• Material: Aviation-grade 6005-T5 aluminum alloy frame + Q235B embedded parts

• Compatible Module Types: Monocrystalline / bifacial photovoltaic modules, 30-40mm thickness

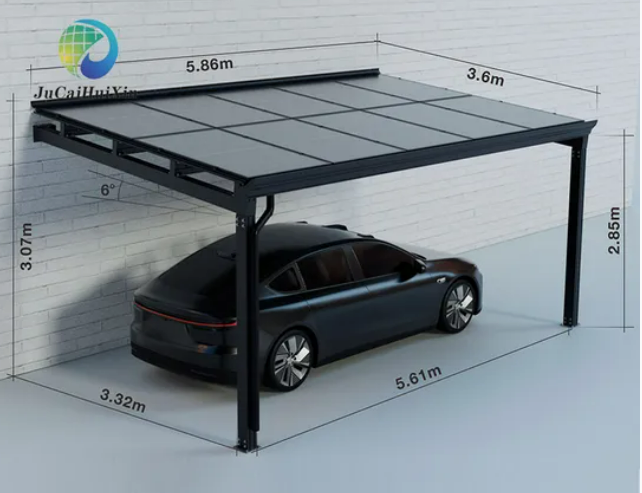

• Span Size: Width 3-6 meters, Height 2.2-3.5 meters (customizable)

• Max Wind Resistance: Up to 60 m/s

• Snow Load Capacity: 1.4 kN/m²

• Surface Treatment: Anodized with matte black finish for enhanced corrosion resistance

• Warranty: 25 years structural warranty, 5 years power warranty on photovoltaic panels

• Foundation Options: Concrete or ground screws

Installation Steps:

1. Foundation preparation with embedded column base ensuring ≤3mm horizontal deviation

2. Assembly of aluminum alloy columns and beams with anti-loosening treatment

3. Photovoltaic panel mounting with 5mm thermal expansion gaps

4. Electrical connection to inverter and optional energy storage system

5. System testing for power efficiency and structural stability with acceptance report

Benefits & Applications:

• Integrated solar carport and home photovoltaic solution

• Supports bifacial modules for up to 15% increased power generation

• Single-column design reduces material cost by 20% while maintaining stability

• Non-penetrating roof technology protects building integrity

• Matte black surface reduces light pollution and complements modern home designs

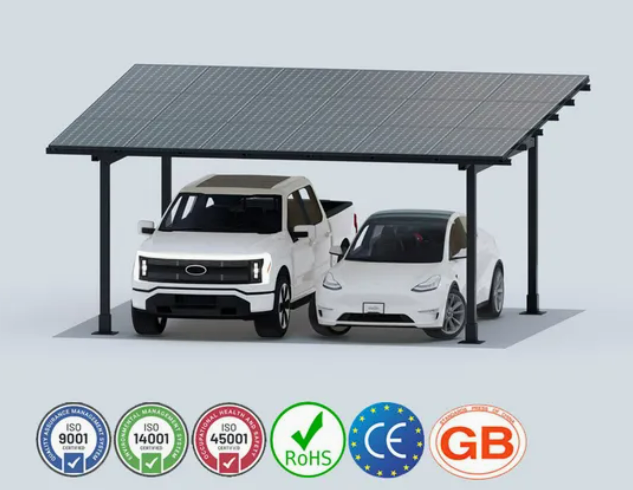

• Modular and scalable to cover 1-4 parking spaces and compatible with EV charging stations
