Maximize Energy Output with Adjustable Bracket Designs
Model No.: Flat Tin Roof Mount
Item No.: HQ-ADR01
Brand: HQ MOUNT
Material: Anodized Aluminum 6005-T6 & Stainless Steel 304
Standards: AS/NZS 1170.2:2011, JIS C 8955:2011
Origin: Xiamen, China
Shipping Port: Xiamen
Lead Time: Based on order quantity
Warranty: 12 Years
☀️ Product Overview

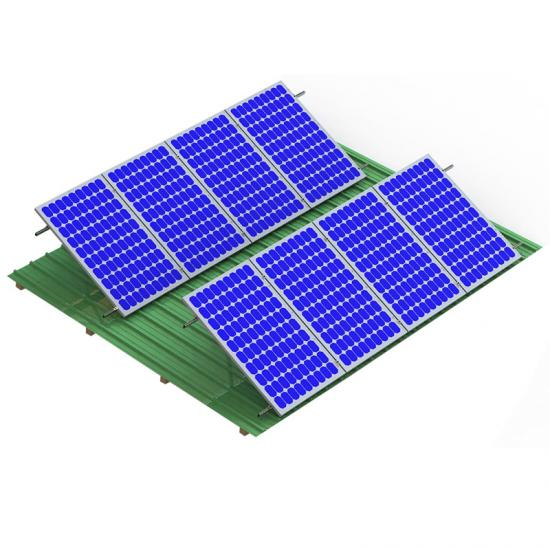

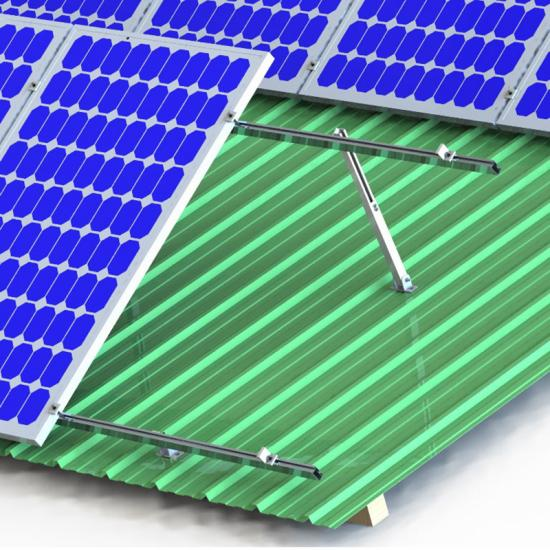

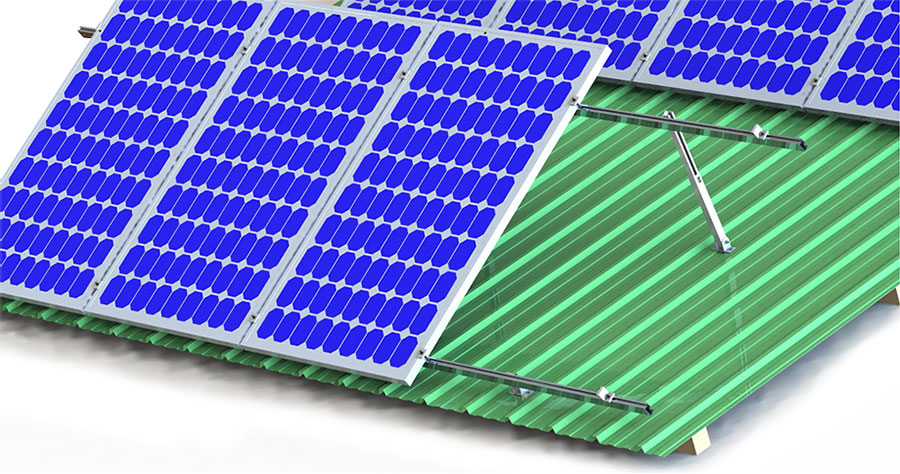

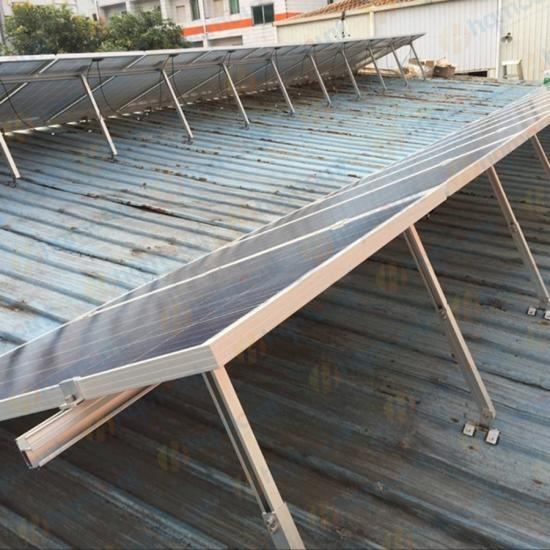

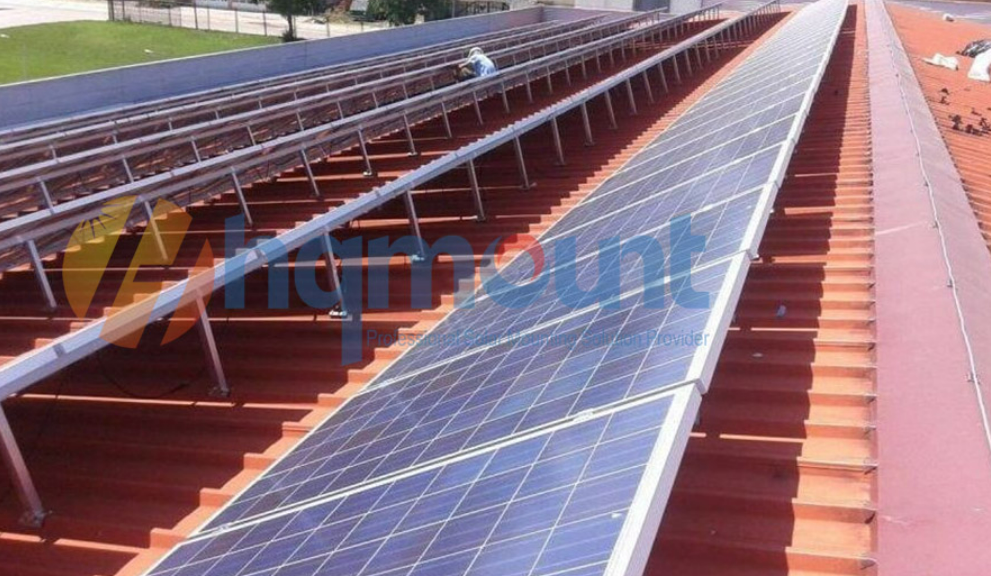

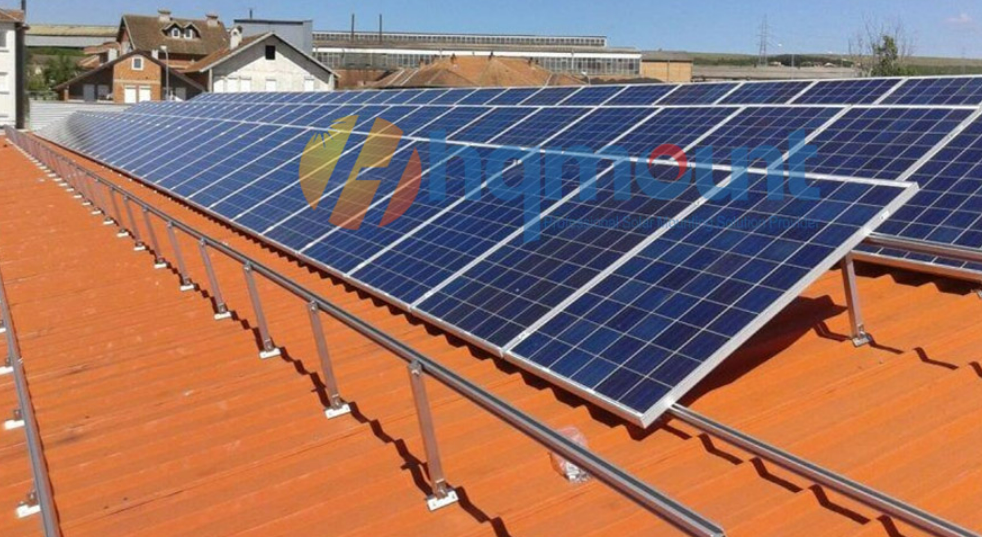

The Flat Tin Roof Adjustable Tilt Solar Mounting System is an ideal solution for commercial and residential solar projects requiring tilt optimization. Designed for flat metal rooftops, the system supports adjustable tilt angles from 10° to 60°, significantly increasing solar energy output by optimizing panel orientation based on geographic conditions.
With pre-assembled components and flexible design, this system offers both structural reliability and fast installation, ensuring cost efficiency and long-term durability.

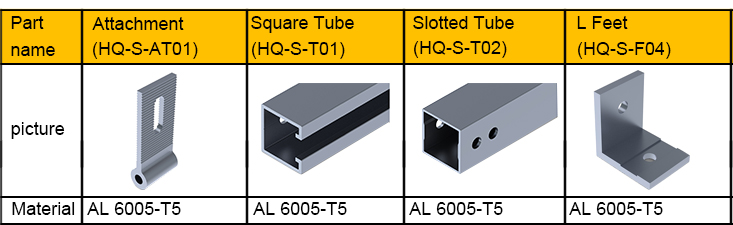

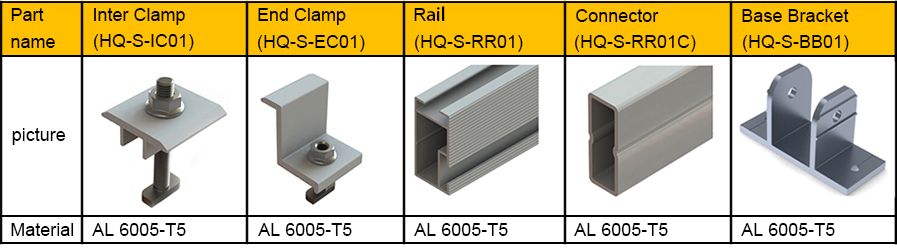

📐 Technical Specifications
| Parameter | Details |
|---|---|
| Application Surface | Flat Tin Roof |
| PV Module Type | Framed |
| Layout | Landscape or Portrait |
| Tilt Angle Range | Adjustable: 10°–15°, 15°–30°, 30°–60° |
| Wind Speed | Up to 88 m/s (316.8 km/h or 196.9 mph) |
| Snow Load | Up to 1.4 kN/m² |
| Building Height | Up to 20 meters |
| Finish | Anodized Aluminum |
| Warranty | 12 Years Material Warranty |
| Lifespan | 20+ Years |
🔧 System Features
- ✅ Adjustable Tilt Design — Maximize solar panel exposure for improved energy yield.
- ✅ Universal Compatibility — Fits all standard framed solar panels.

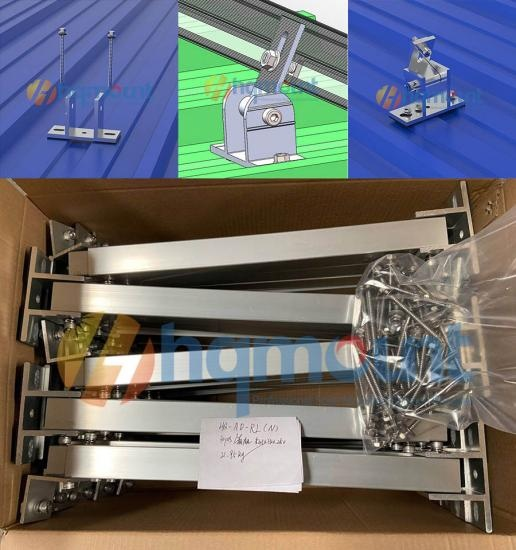

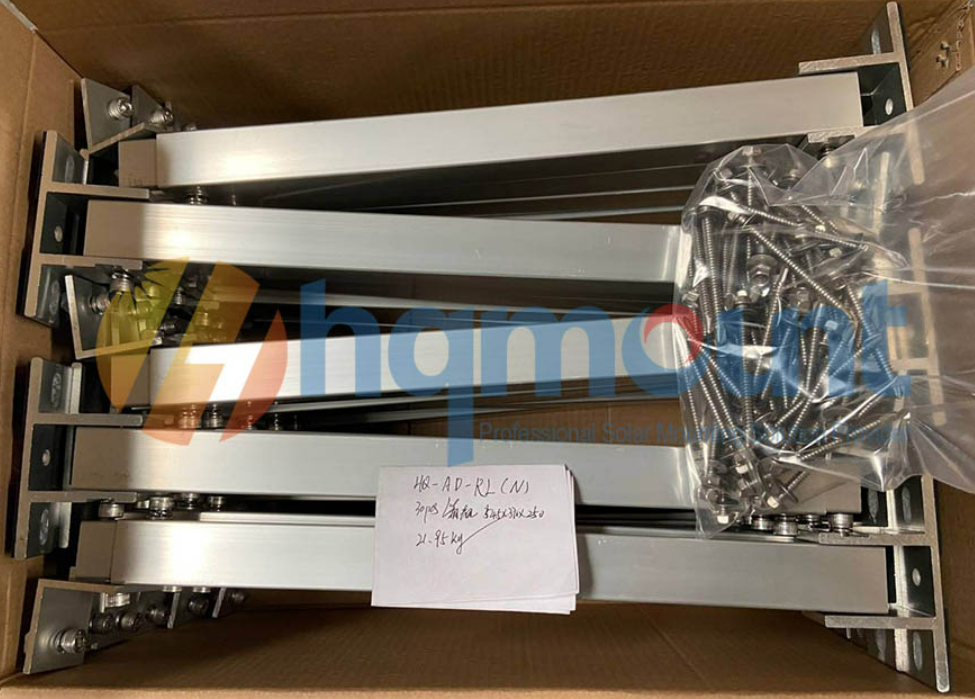

- ✅ Pre-assembled Components — Save installation time and reduce labor costs.
- ✅ Corrosion-Resistant Materials — Long-lasting and weatherproof.
- ✅ Certified Safety — Meets international mounting standards.
🛠️ Installation Highlights
Installation Steps:

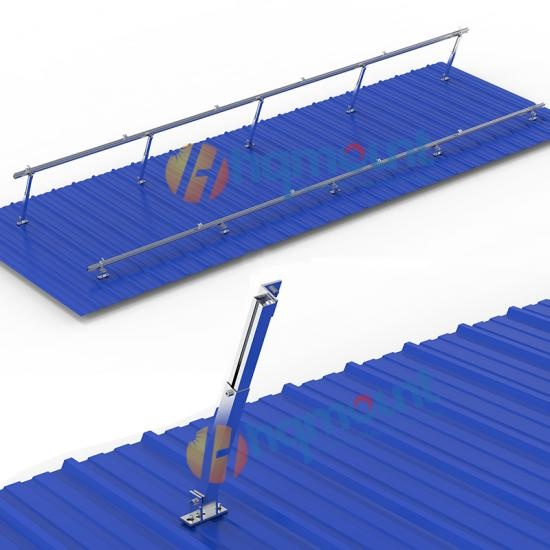

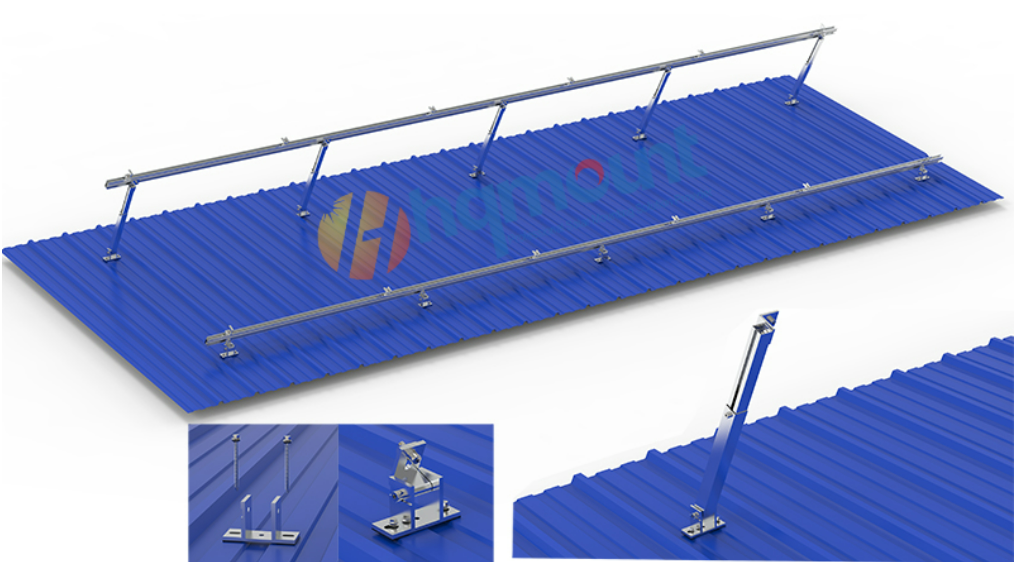

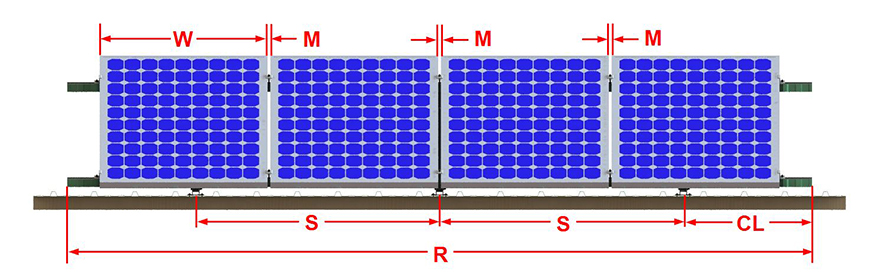

- Position Base Brackets:

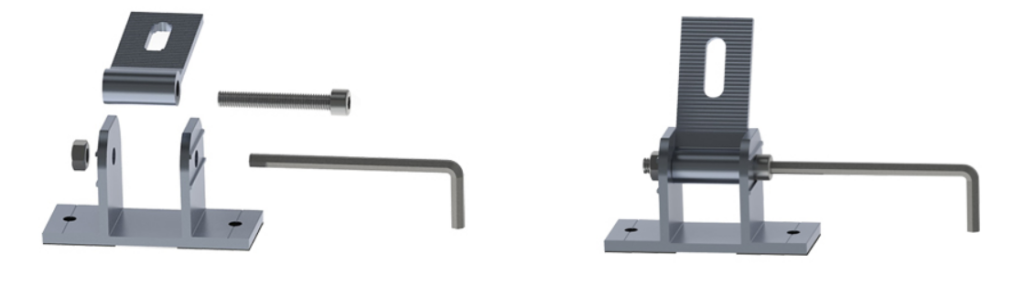

Determine spacing based on tilt angle and panel layout. - Mount Front Base:

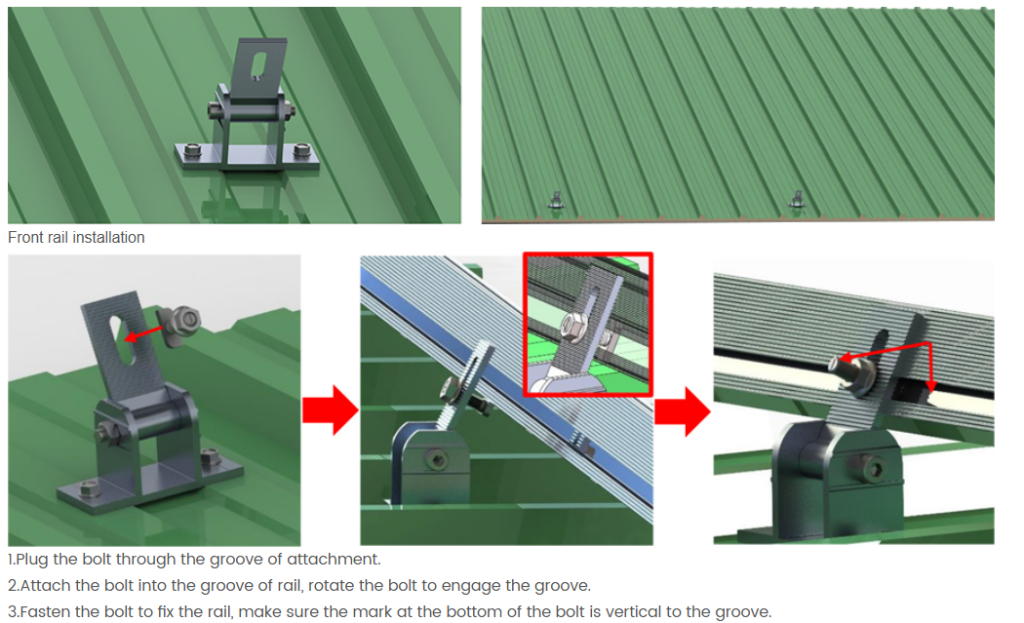

Pre-assembled brackets are fixed to the tin roof with screws. - Install Rails:
- Insert bolts through bracket grooves and into rail slots.
- Rotate bolts until aligned and tighten firmly.

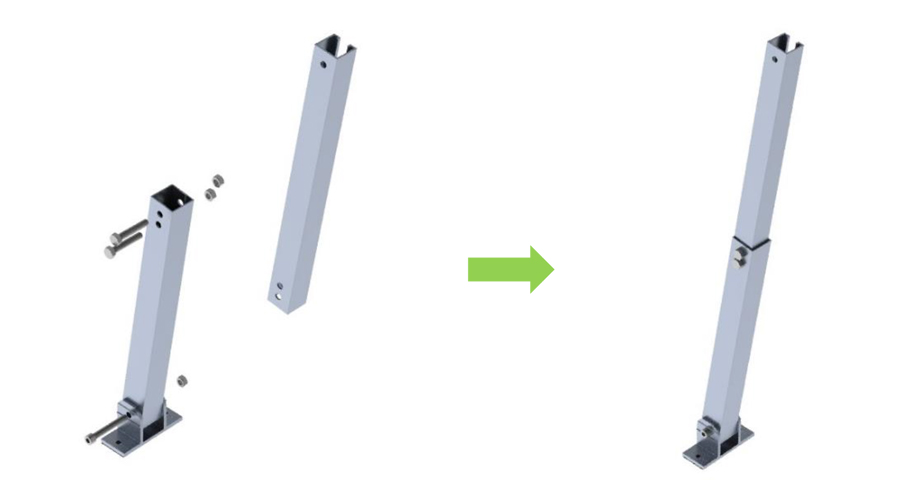

- Rear Support Setup:

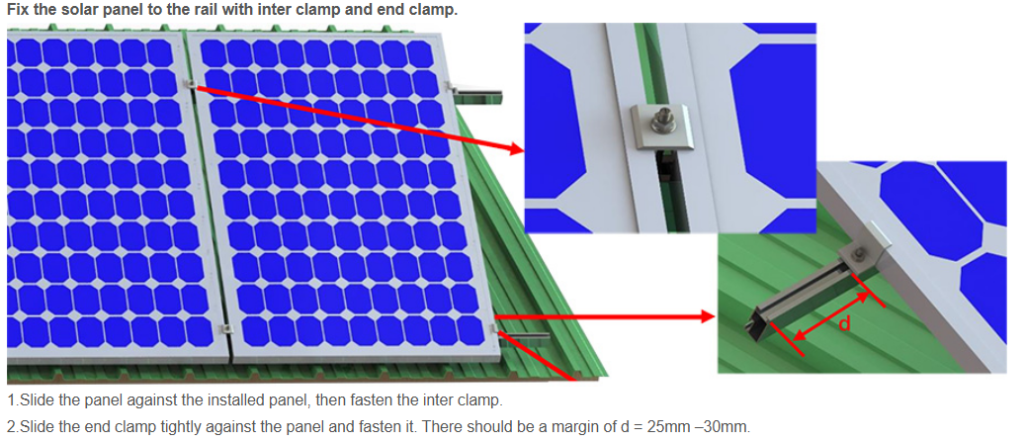

Rear adjustable support comes pre-assembled for rapid mounting. - Attach Solar Panels:

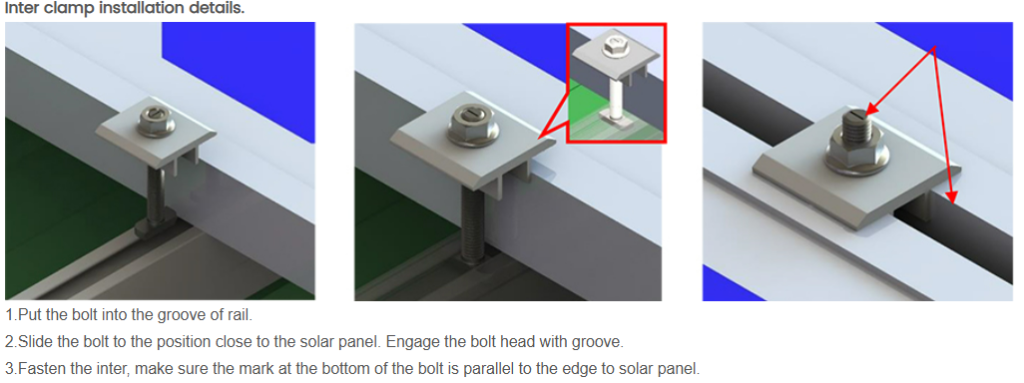

- Use inter clamps between panels.
- Use end clamps at the outer edges.
- Maintain a margin of 25–30mm between panel and clamp.
💡 Why Choose This System?
- Designed specifically for flat metal roofs with variable tilt needs
- Improves solar performance in areas with non-optimal sun angles
- Engineered to handle high wind and snow loads
- Easy to install, suitable for small and large projects alike

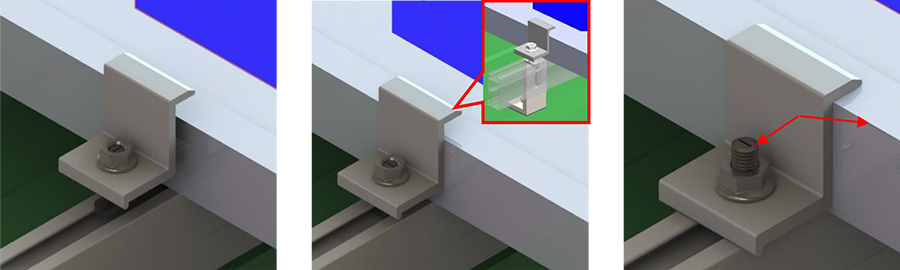

End clamp installation details.
1.Put the bolt into the groove of rail.
2.Slide the bolt to the position close to the solar panel. Engage the bolt head with groove.
3.Fasten the end clamp, make sure the mark at the bottom of the bolt is parallel to the edge to solar panel.
