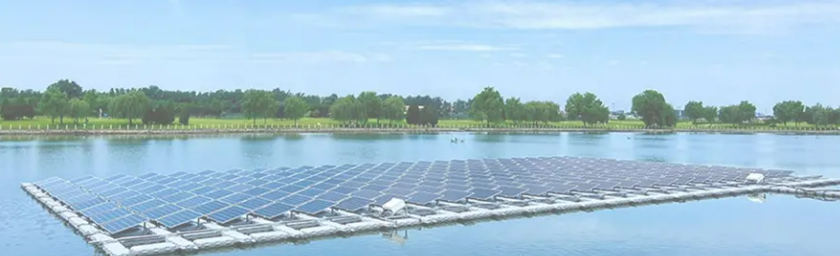

The Floating Solar Mounting System is a cutting-edge solution designed to generate clean, renewable energy by utilizing unused water surfaces such as lakes, ponds, reservoirs, and other still water bodies. This innovative system not only helps conserve valuable land resources but also boosts solar panel efficiency through water’s natural cooling effect. It’s a highly adaptable, environmentally friendly alternative to traditional ground-mounted systems, ideal for land-constrained or industrial regions.

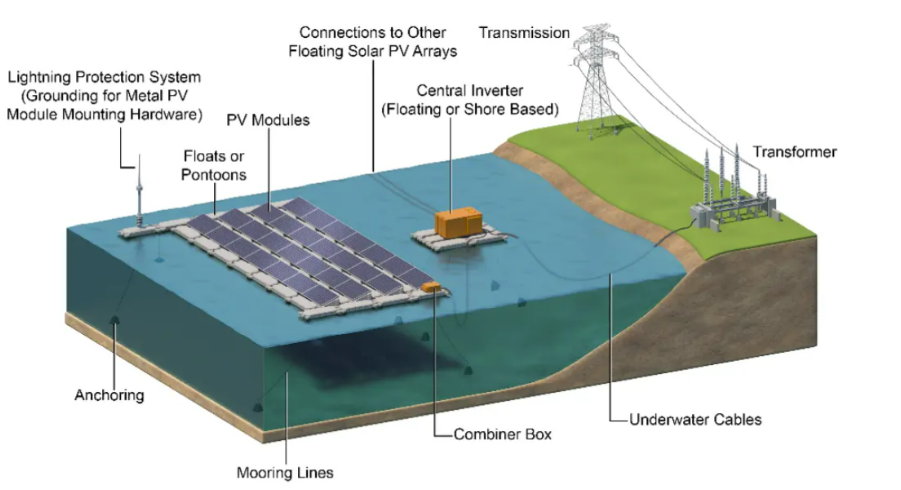

🛠 Technical Structure & Durable Materials
Engineered for durability and long-term performance, the floating solar system features:
- High-Density Polyethylene (HDPE) floaters for strong buoyancy, corrosion resistance, and UV protection
- Anodized aluminum alloy frames that ensure structural integrity and longevity
- Adjustable tilt angles (5°–25°) for optimal solar exposure
- Modular design for easy transport, installation, and scalability
✅ Load & Weather Resistance
- Wind Load Capacity: Up to 60 m/s
- Snow Load Capacity: Up to 1.5 kN/m²
- Operating Temperature Range: -25°C to 40°C
- Wave Height Tolerance: ≤ 0.5 m
- Standards Compliant: BS, AS/NZS 1170, DIN 1055, JIS C8955:2017
🌍 Application Scenarios & Environmental Benefits
The Floating Solar Mounting System is ideal for a wide range of water-based solar installations:
- Reservoirs, ponds, lakes, and dams
- Water treatment facilities
- Irrigation and industrial water bodies
- Regions with limited land availability
🌿 Key Advantages:
- No land usage – ideal for urban and agricultural zones
- Increased panel efficiency by up to 15% due to water cooling
- Reduces water evaporation, aiding in water conservation
- Minimal ecological impact with proper anchoring and design
- Scalable and modular for projects of all sizes

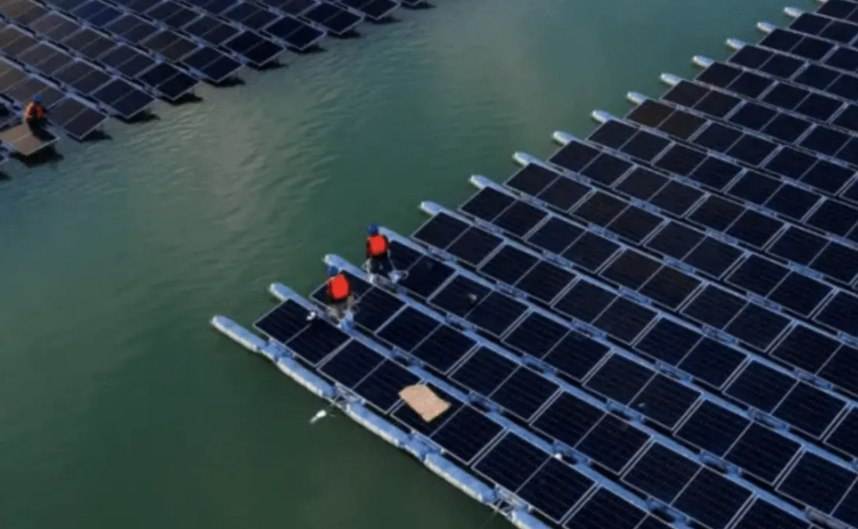

⚙️ Easy Installation & Low Maintenance
The system’s lightweight, modular design ensures quick assembly and simplified deployment. HDPE floaters are easy to handle and highly resistant to weather, ensuring long-lasting performance with minimal upkeep.
Maintenance primarily involves:
- Routine inspections for mooring and anchoring stability
- Occasional cleaning of solar panels due to reduced soiling from water-based environments
- System modularity, which allows easy replacement or upgrades
📈 Product Specifications at a Glance
| Feature | Details |
|---|---|
| Material | HDPE + Aluminum Alloy |
| Tilt Angle | 5°–25° (adjustable) |
| Max Wind Load | ≤ 60 m/s |
| Max Snow Load | ≤ 1.5 kN/m² |
| Temperature Range | -25°C to 40°C |
| Design Life | 20–25 Years |
| Warranty | 8–10 Years |
| Installation Site | Lake, Pond, Reservoir, Dam |
🔎 Ideal For:
- Governments and municipalities seeking land-free solar options
- Energy developers working on utility-scale water-based PV
- Industrial and agricultural operations needing dual-purpose water use
- Regions with high evaporation or limited real estate
📤 Get Your Project-Specific Quote Today
Whether you’re planning a large-scale reservoir solar farm or a small pond-based system, request a customized quote to compare options from global suppliers.
✅ No brand lock-in
✅ Fast turnaround
✅ Optimized for your location and budget
